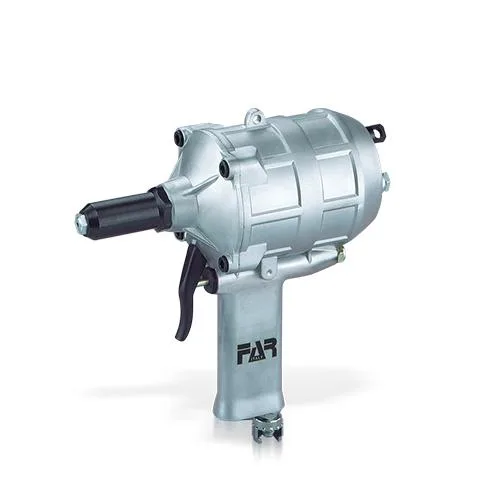

RAC83/95
Fixed and speed pneumatic tools. Cast aluminum body, steel controls.
For fixing burst rivets from Ø 2.4 to Ø 4.8 mm (only Ø 4.8 mm for aluminium).
| Průměr nýtu | Al | St | A2 | Cu | CuNi |
|
2,4 |
x | x | x | x | x |
| 3,0 | x | x | x | x | x |
| 3,2 | x | x | x | x | x |
| 3,4 | x | x | x | x | x |
| 4,0 | x | x | x | x | x |
| 4,8 / 5,0 | x - only 4,8 | ||||
| 6,0 | |||||
| 6,4 | |||||
| 7,8 |
| Model | RAC83/95 |

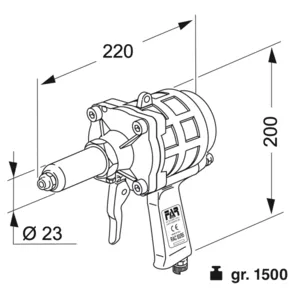

| Diameter of the riveter nose | 23 mm |
| Stroke | 19 |
| Weight | 1,5 kg |
| Tensile | 5,372 kN |
| Riveting range |
2,4 mm - 4,0 mm 4,8only in aluminum |
