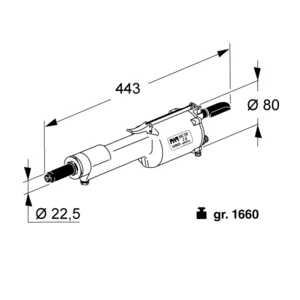

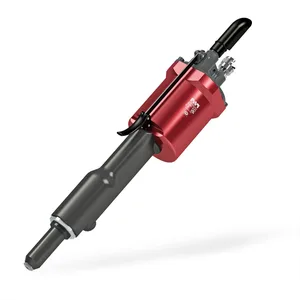

RAC230
Hydropneumatic tools for standard rivets and closed rivets of ∅ 2.4 - 5.0 mm from all materials. Suitable for vertical riveting and/or assembly lines.
- Nose diameter - 22.5
- Operating pressure - 6 bar
- Maximum force - 9.4 kN at 6 bar
- Working stroke - max. 16 mm
- Air consumption - 1.8 l
- Air supply hose - 6 mm
- Weight - 1.66 kg
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
x | x | x | x | x |
| 3,0 | x | x | x | x | x |
| 3,2 | x | x | x | x | x |
| 3,4 | x | x | x | x | x |
| 4,0 | x | x | x | x | x |
| 4,8 | x | x | x | x | x |
| 6,0 | |||||
| 6,4 | |||||
| 7,8 |
