RAC181

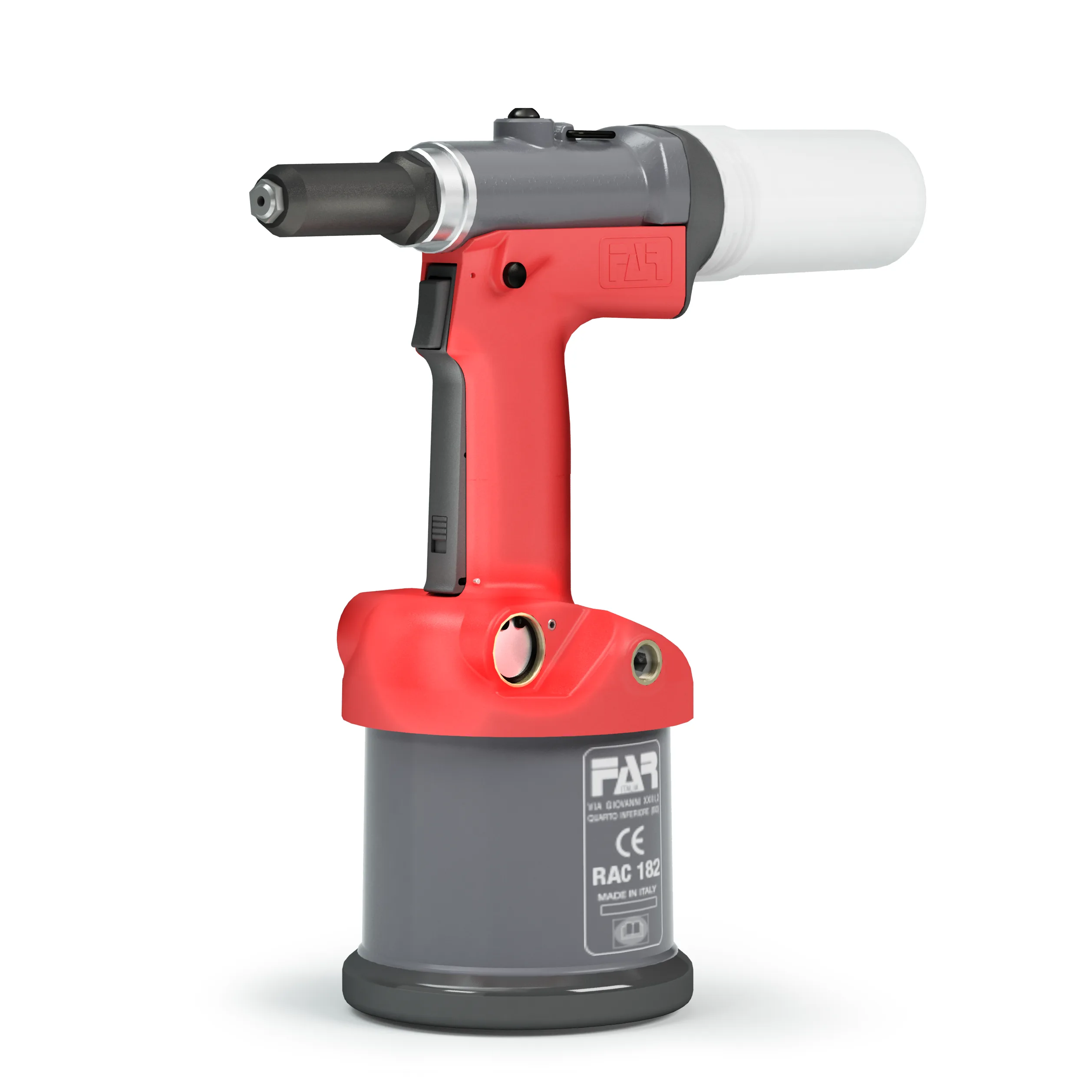

The FAR RAC182 is an ideal helper for high-volume production thanks to its ergonomic shape and low weight.
- Easy, fast operation
- Air inlets can be set on both sides of the tool
- Ideal for high volume production
- Damping device to reduce noise
- Automatic suction function - new adjustment of suction for lower consumption of compressed air
- Trigger suction function
- Stroke 20.5 mm
- Maximum force 10.50 kN
- Riveting range 2.4 mm - 6.0 mm, designed for fastening standard aluminum rivets from Ø 2.4 to 6 mm (Ø 6 mm in aluminum) and high-performance rivets up to Ø 4.8 mm
- Able to deploy structural and Trifar rivets
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
x | x | x | x | x |
| 3,0 | x | x | x | x | x |
| 3,2 | x | x | x | x | x |
| 3,4 | x | x | x | x | x |
| 4,0 | x | x | x | x | x |
| 4,8 / 5,0 | x | x | x | x | x |
| 6,0 | x | ||||
| 6,4 | |||||
| 7,8 |

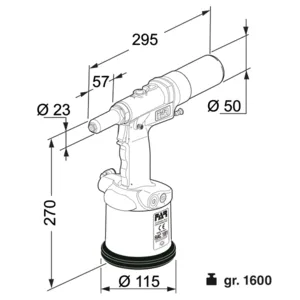

| Model | FAR RAC182 |
| Stroke | 20,5 mm |
| Air pressure (bar) | 6 |
| Weight | 1,7 kg |
| Diameter of the riveter nose | 23 mm |
| Tensile | 10,5 kN |
| Riveting range |
rom 2.4 mm to 4.8 mm in aluminium, steel and stainless steel up to 6.0 mm in aluminium able to deploy structural and Trifar rivets |
| Suck | Automatic and triggered |
