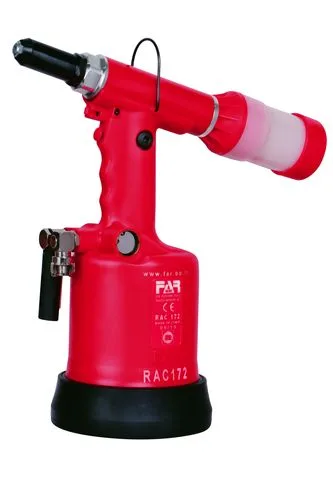

RAC172

Hydropneumatic riveting tool ideal for setting solid rivets with ø 6 mm or 6.4 mm. With maximum applied force (22.725N), the RAC172 riveter can fasten solid rivets and other fasteners with mandrel diameters from 4.4mm to 5.3mm, including commercially available rivets.

  • Easy and fast operation
  • Ideal for high volume production
  • Designed for fixing solid rivets
  • It has an improved cycle time due to the shorter stroke
  • For structural rivets
  • It can restore the cut end of the mandrel once the rivet is set

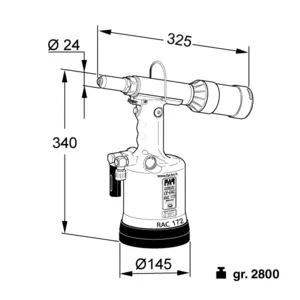

RAC172 nakres

Maximum force: 22725N

Tensile: 19,5mm

Rivet diameter Al St A2 Cu CuNi

2,4

3,0
3,2
3,4
4,0
4,8 / 5,0
6,0 x x x x x
6,4 x x x x x
7,8
Model RAC172
Stroke 19,5 mm
Air pressure (bar) 6
Weight 4,9 kg
Diameter of the riveting nose 24 mm
Tensile 22,725 kN
Riveting range

6,0 - 7,8

for structural rivets
