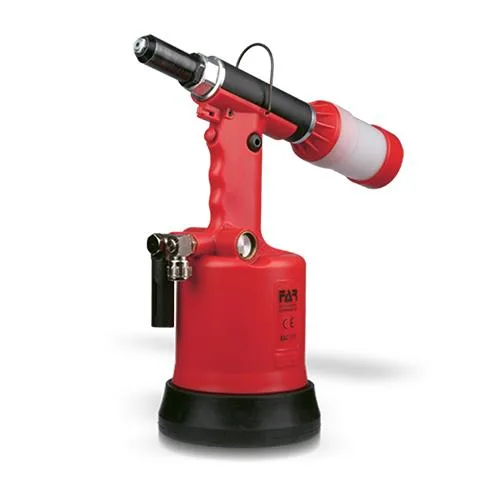

RAC171
A versatile riveter ideal for use in tight spaces, where it can place rivets easily and without any problems.
- Easy and fast operation
- Ideal for high volume production
- Automatic suction function
- System for safe collection of used mandrels
- With front air inlets on the swivel attachment, it is ideal for use in confined spaces
- A built-in vacuum allows the rivet to be held in place, allowing the operator a free hand
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
|||||
| 3,0 | |||||
| 3,2 | |||||
| 3,4 | |||||
| 4,0 | |||||
| 4,8 / 5,0 | x | x | x | x | x |
| 6,0 | x | x | x | x | x |
| 6,4 | x | x | x | x | x |
| 7,8 | x |
| Model | RAC171 |
| Stroke | 25,5 mm |
| Air pressure (bar) | 6 |
| Weight | 2,9 kg |
| Diameter of the riveter nose | 24 mm |
| Tensile | 17,273 kN |
| Riveting range |
4,8 - 7,8 for structural rivets |
| Suck | automatic |
