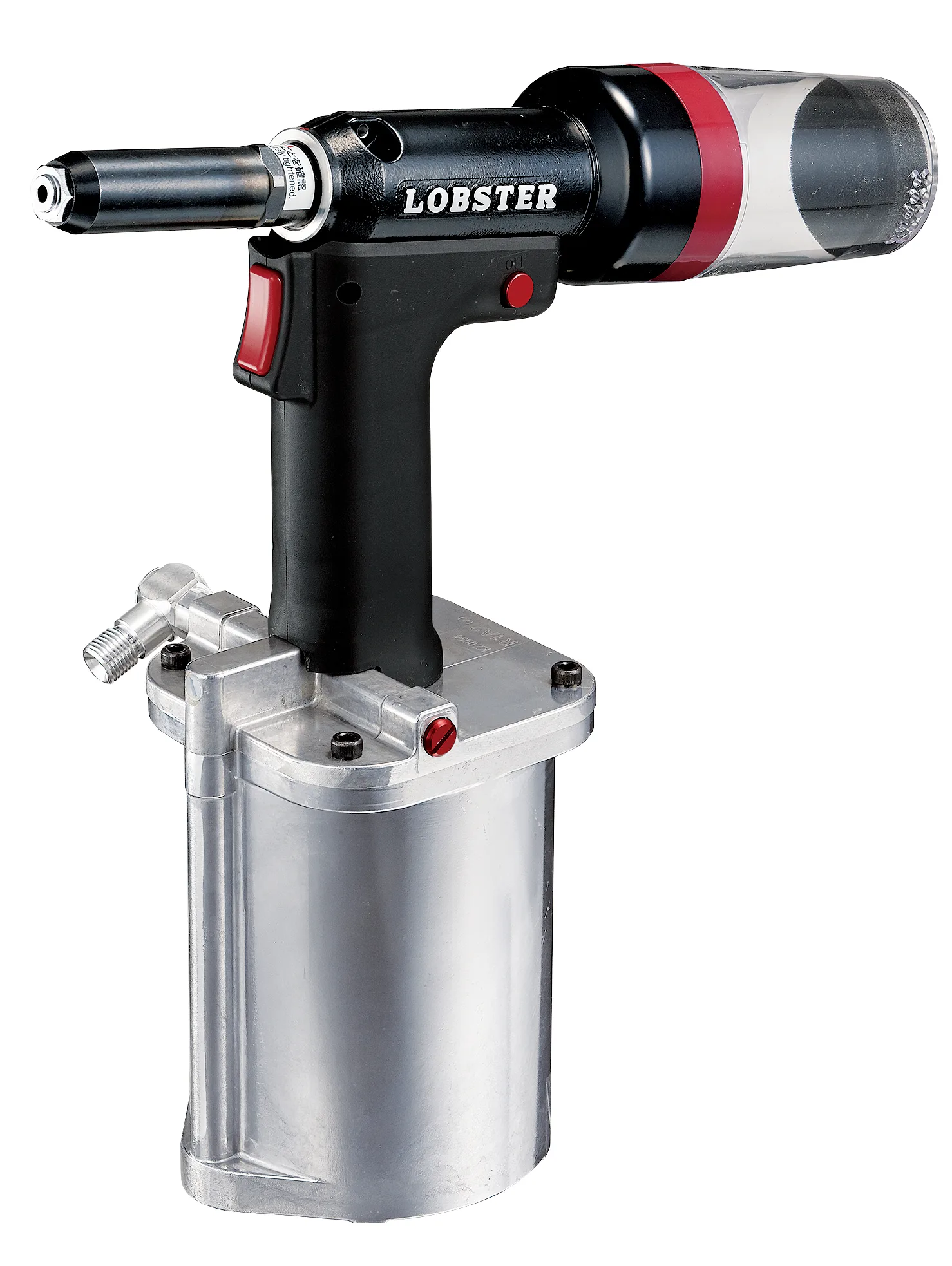

Lobster R1A2
The latest generation of heavy-duty pneumatic-hydraulic riveting tools from this well-established brand. R1A2 Heavy Duty Riveters are engineered to deliver value and performance in a lightweight, powerful package. It is designed for both standard and structural rivets.
- Lightweight, with an excellent power-to-weight ratio with a pulling force of 18.5 kN
- 22.0mm diameter narrow nose assembly for narrow access applications
- Soft-Set shockless technology offers ergonomically correct action to minimize the risk of CTD (Cumulative Traumatic Disorders)
- Noise reducing muffler
- Optional parts will allow this tool to seat structural rivets
- Wear-resistant surfaces extend tool life
- Thanks to the improved design of the air circuits, it uses 30% less air than the previous generation tools. This reduces compressor costs and is environmentally friendly
- Swivel air connection with air inlets on the left and right side allows for greater operator flexibility and productivity
- Long stroke 26.0 mm
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
|||||
| 3,0 | |||||
| 3,2 | |||||
| 3,4 | |||||
| 4,0 | |||||
| 4,8 / 5,0 | x | x | x | x | x |
| 6,0 | x | x | x | x | x |
| 6,4 | x | x | x | x | x |
| 7,8 |
| Model | Dimension 1 | Dimension 2 | Dimension 3 | Dimension 4 | Dimension 5 |
|---|---|---|---|---|---|
| R1A2 | 311mm | 313mm | 134mm | 66,5mm | φ22mm |
| Model | R1A2 |
| Stroke | 26 mm |
| Air consumption (l/min) | 75 suction on |
| Weight | 1,74 kg |
| Diameter of the riveter nose | 22 mm |
| Work pressure (MPa) | 0,5-0,6 |
| Tensile | 18,5 kN |
| Riveting range |
4,8/6,4 for all materials |
| Noise (dB) | 80 |
| Vibration | less than or equal to2,5 m/s² |
| Collets | Ultra "H" |
