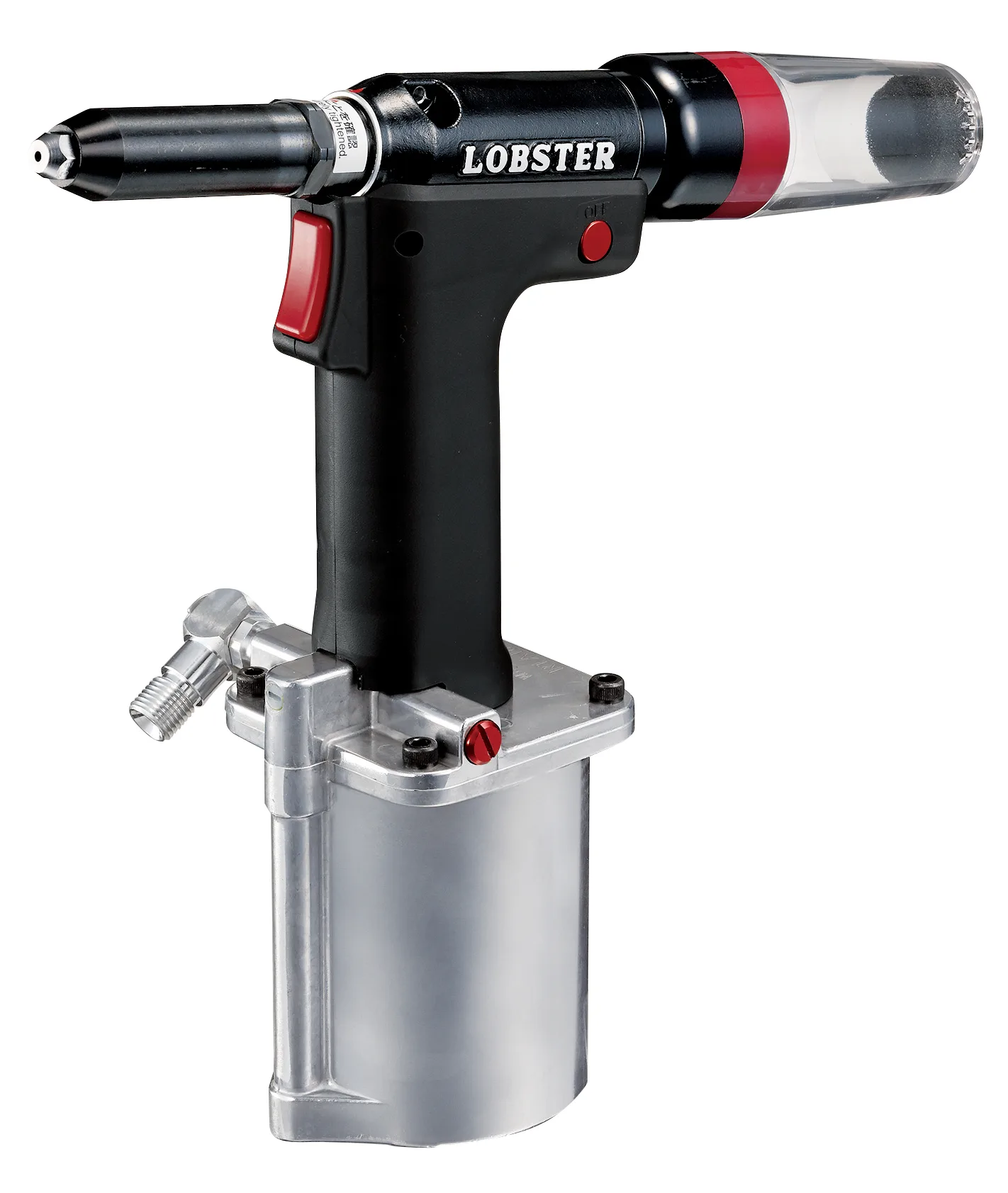

Lobster R1A1
The latest generation of pneumatic-hydraulic riveting tools from this established brand. R1A1 Riveters are engineered to deliver value and performance in a lightweight, powerful package.
- Lightweight, with an excellent power-to-weight ratio with a pulling force of 10 kN (lowest weight in its class)
- Fixes rivets Ø 2.4 to 4.8 mm of all materials
- Narrow 22.0 mm diameter nose for application in tight spaces
- Soft-Set technology absorbs shock, promoting employee safety and reducing the risk of cumulative trauma disorder
- Noise reducing muffler
- Fast riveting with a long stroke of 19 mm
- Integrated vacuum system for attaching rivets and collecting mandrels
- Wear-resistant materials ensure long tool life
- Thanks to an improved air circuit design, it uses 25% less air than previous generation tools, reducing compressor costs and being environmentally friendly
- .The rotating air connection on the left and right side allows for greater operator flexibility and productivity
Rivet diameter | Al | St | A2 | Cu | CuNi |
2,4 |
x | x | x | x | x |
3,0 | x | x | x | x | x |
3,2 | x | x | x | x | x |
3,4 | x | x | x | x | x |
4,0 | x | x | x | x | x |
4,8 / 5,0 | x | x | x | x | x |
6,0 | |||||
6,4 | |||||
7,8 |
Model | Dimension 1 | Dimension 2 | Dimension 3 | Dimension 4 | Dimension 5 |
---|---|---|---|---|---|
R1A1 | 295mm | 265mm | 106mm | 71,5mm | φ22mm |
Model | R1A1 |
Stroke | 19 mm |
Air consumption (l/min) | 68 suction on |
Weight | 1,1 kg |
Diameter of the riveter nose | 22 mm |
Work pressure (MPa) | 0,5-0,6 |
Tensile | 9 kN |
Riveting range |
2,4/3,2/4,0/4,8 for all materials |
Noise(dB) | 69,5 |
Collets | Ultra "M" |
