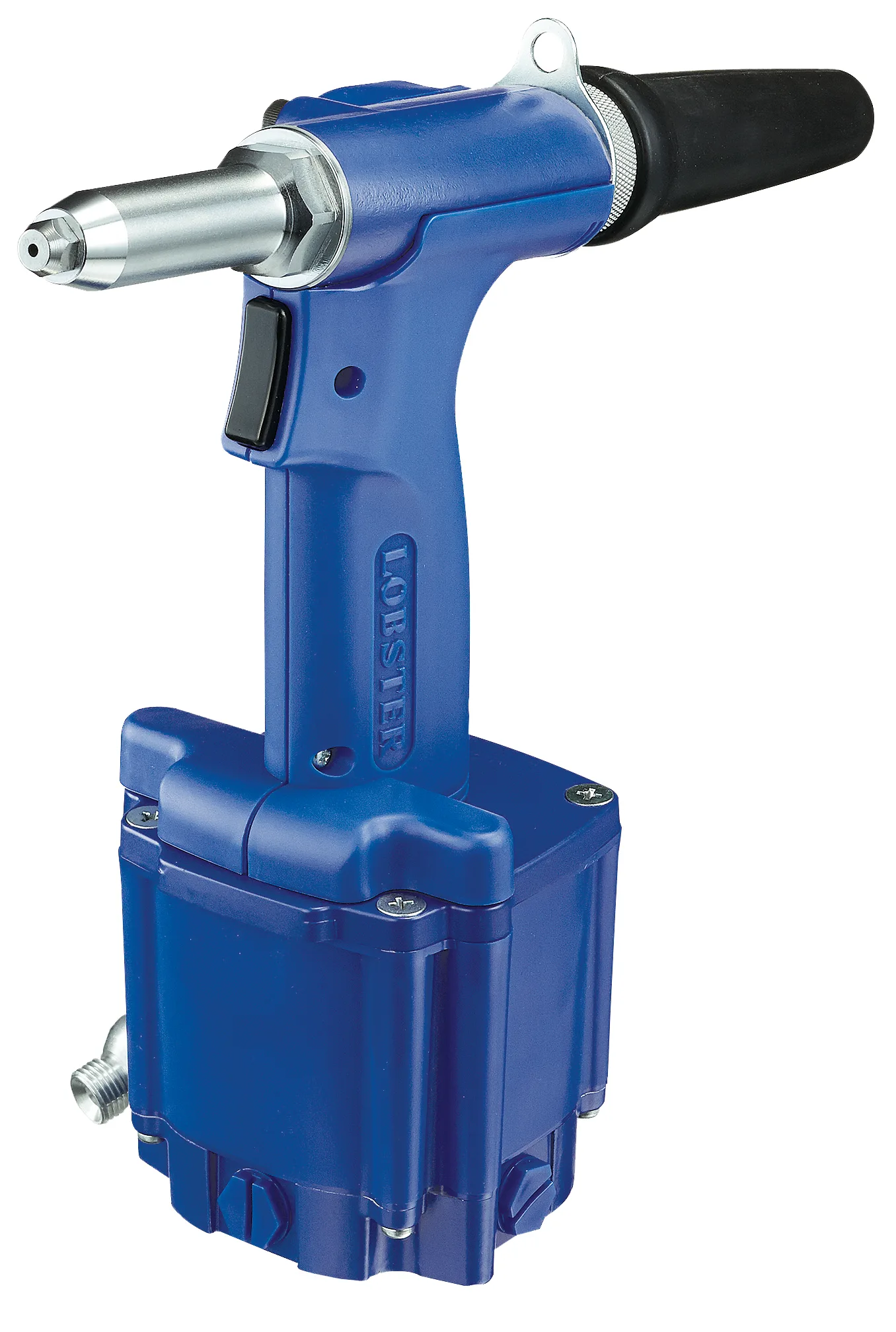

Lightweight and high volume riveter for use with small diameter rivets. The 2000 Series features a faster rivet setting cycle and longer stroke for increased productivity.
Rivet diameter | Al | St | A2 | Cu | CuNi |
2,4 |
x | x | x | x | x |
3,0 | x | x | x | x | x |
3,2 | x | x | x | x | x |
3,4 | x | x | x | x | x |
4,0 | x | x | |||
4,8 / 5,0 | |||||
6,0 | |||||
6,4 | |||||
7,8 |
Model | Dimension 1 | Dimension 2 | Dimension 3 | Dimension 4 | Dimension 5 |
---|---|---|---|---|---|
AR2000S | 266mm | 240mm | 94mm | 62.0mm | φ19mm |
Model | AR-2000S |
Stroke | 14 mm |
Air consumption (l/cycle) | 0,6 |
Weight | 1,1 kg |
Diameter of the riveting nose | 19 mm |
Work pressure (MPa) | 0,5-0,6 |
Tensile | 4,8 kN |
Riveting range |
2,4/3,2 for all materials 4,0 without stainless steel |
Collets | Ultra S |
