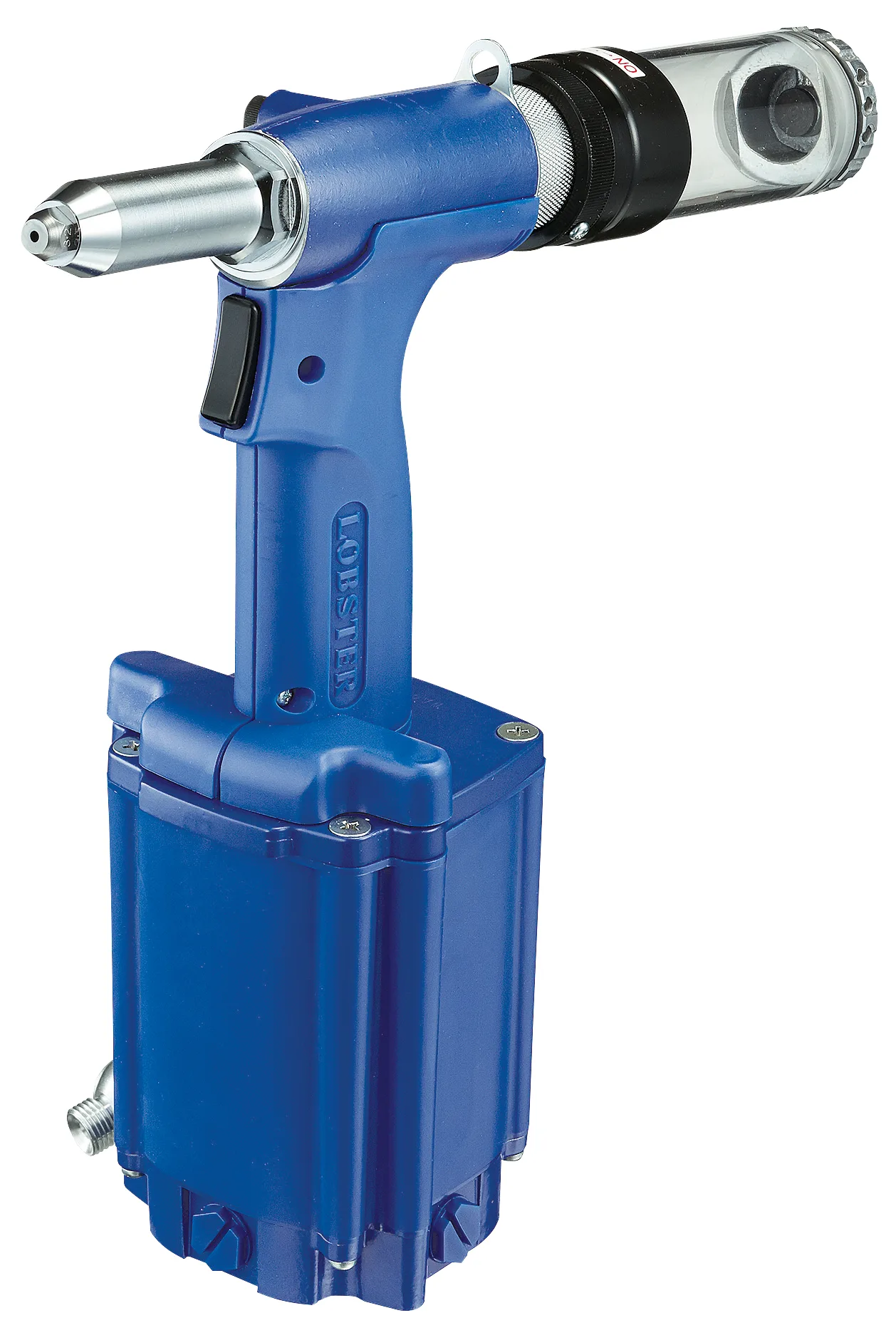

Lobster AR2000MV
Lightweight riveting pliers with an excellent power-to-weight ratio.
- Shockless technology offers ergonomically correct operation to minimize the risk of cumulative trauma disorder
- Fixes Ø 2.4/3.2/4.0/4.8mm rivets in all materials and Ø 3.2/4.0
- The integrated silencer reduces working noise and is more environmentally friendly
- Wear-resistant materials (high-strength polymer housing) ensure a long tool life
- The air hose can be attached to both sides of the riveter for greater flexibility of use
- Long stroke
- Integrated vacuum system for holding rivets and collecting mandrel
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
x | x | x | x | x |
| 3,0 | x | x | x | x | x |
| 3,2 | x | x | x | x | x |
| 3,4 | x | x | x | x | x |
| 4,0 | x | x | x | x | x |
| 4,8 / 5,0 | x | x | x | x | x |
| 6,0 | |||||
| 6,4 | |||||
| 7,8 |
| Model | Dimension 1 | Dimension 2 | Dimension 3 | Dimension 4 | Dimension 5 |
|---|---|---|---|---|---|
| AR2000MV | 307mm | 283mm | 94mm | 64,5mm | φ21mm |
| Model | AR-2000MV |
| Stroke | 16 mm |
| Air consumption (l/min) | 90 suction on |
| Weight | 1,4 kg |
| Diameter of the riveter nose | 21 mm |
| Work pressure (MPa) | 0,5-0,6 |
| Tensile | 9,1 kN |
| Riveting range |
2,4/3,2/4,0/4,8 for all materials |
| Collets | Ultra "M" |
