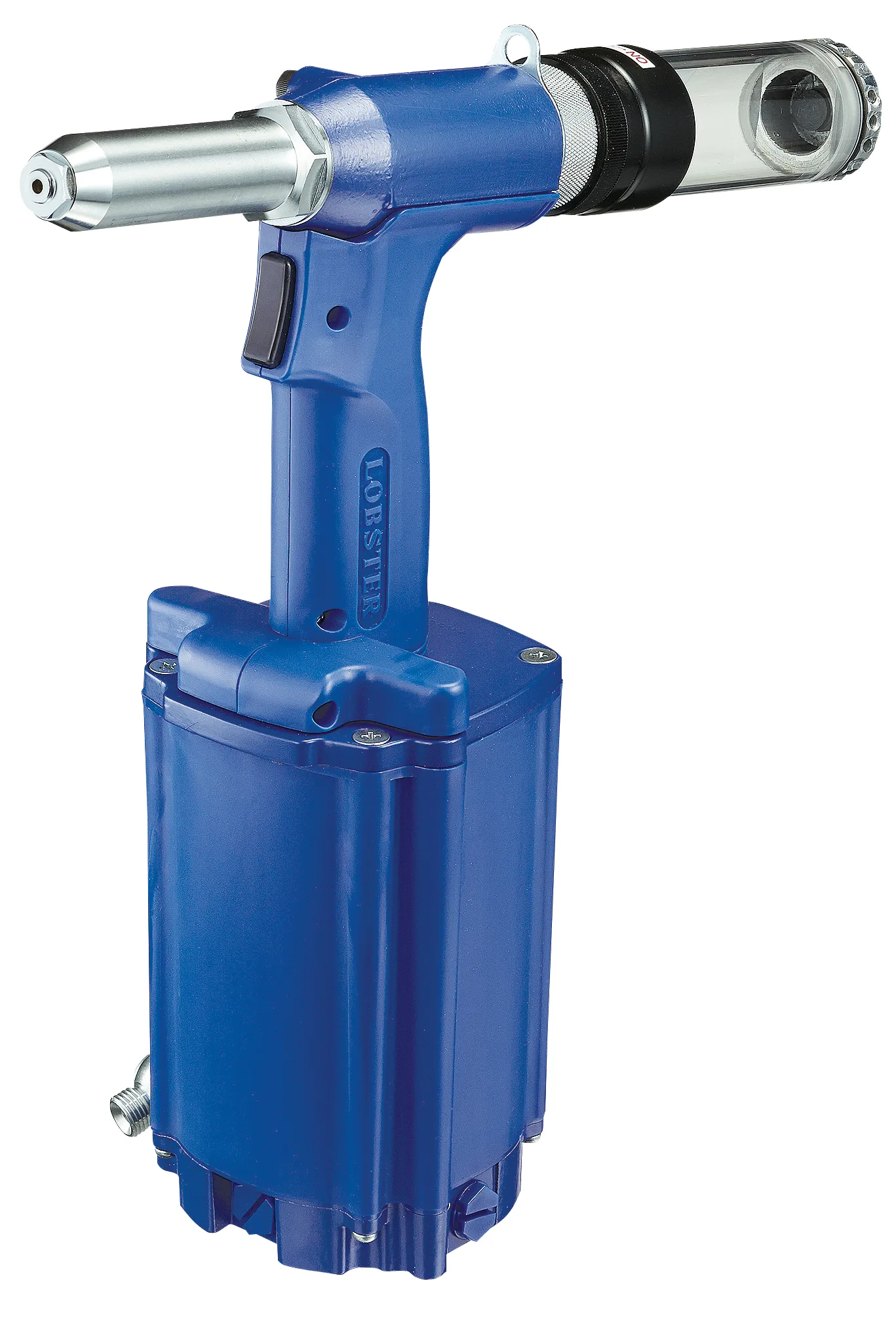

Lobster AR2000HV
Lightweight riveting pliers with an excellent power-to-weight ratio.
- Shockless technology offers ergonomically correct operation to minimize the risk of cumulative trauma disorder
- Fastens Ø 4.8/6.4 mm rivets in all materials and Ø 3.2/4.0 with optional accessories
- The integrated silencer reduces working noise and is more environmentally friendly
- Wear-resistant materials (high-strength polymer housing) ensure a long tool life
- The air hose can be attached to both sides of the riveter for greater flexibility of use
- Long stroke
- Integrated vacuum system for holding rivets and collecting mandrel
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
|||||
| 3,0 | |||||
| 3,2 - with optional accessories, supplied separately | x | x | x | x | x |
| 3,4 | |||||
| 4,0 - with optional accessories, supplied separately | x | x | x | x | x |
| 4,8 / 5,0 | x | x | x | x | x |
| 6,0 | x | x | x | x | x |
| 6,4 | x | x | x | x | x |
| 7,8 |
| Model | Dimension 1 | Dimension 2 | Dimension 3 | Dimension 4 | Dimension 5 |
|---|---|---|---|---|---|
| AR2000HV | 343mm | 325mm | 106mm | 84,5mm | φ24mm |
| Model | AR-2000HV |
| Stroke | 18,5 mm |
| Air consumption (l/min) | 90 suction on |
| Weight | 1,8 kg |
| Diameter of the riveter nose | 24 mm |
| Work pressure (MPa) | 0,5-0,6 |
| Tensile | 14,0 kN |
| Riveting range |
4,8/6,4 for all materials 3,2/4,0 with optional accessories |
| Collets | Ultra "H" |
