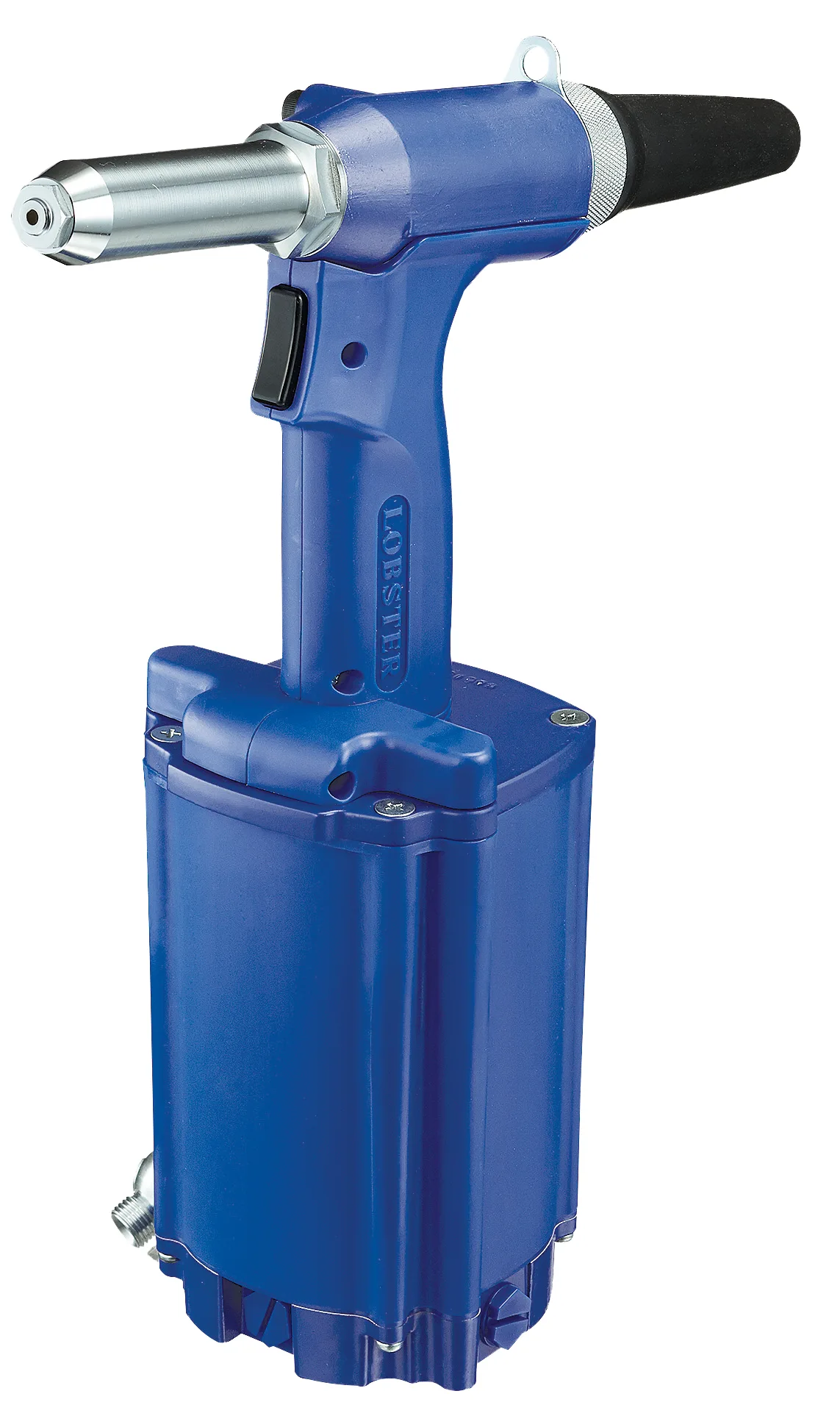

Lobster AR2000H
Lightweight riveting pliers with an excellent power-to-weight ratio.
- Shockless technology offers ergonomically correct operation to minimize the risk of cumulative trauma disorder
- Fastens Ø 4.8/6.4 mm rivets in all materials and Ø 3.2/4.0 with optional accessories
- The integrated silencer reduces working noise and is more environmentally friendly
- Wear-resistant materials (high-strength polymer housing) ensure a long tool life
- The air hose can be attached to both sides of the riveter for greater flexibility of use
- Long stroke
Rivet diameter | Al | St | A2 | Cu | CuNi |
2,4 |
|||||
3,0 | |||||
3,2 - with optional accessories, supplied separately | x | x | x | x | x |
3,4 | |||||
4,0 - with optional accessories, supplied separately | x | x | x | x | x |
4,8 / 5,0 | x | x | x | x | x |
6,0 | x | x | x | x | x |
6,4 | x | x | x | x | x |
7,8 |
Model | Dimension 1 | Dimension 2 | Dimension 3 | Dimension 4 | Dimension 5 |
---|---|---|---|---|---|
AR2000H | 297mm | 325mm | 106mm | 84,5mm | φ24mm |
Model | AR-2000H |
Stroke | 18,5 mm |
Air consumption (l/cycle) | 3,6 |
Weight | 1,6 kg |
Diameter of the riveter nose | 24 mm |
Work pressure (MPa) | 0,5-0,6 |
Tensile | 14,0 kN |
Riveting range |
4,8/6,4 for all materials 3,2/4,0 with optional accessories |
Collets | Ultra "H" |
