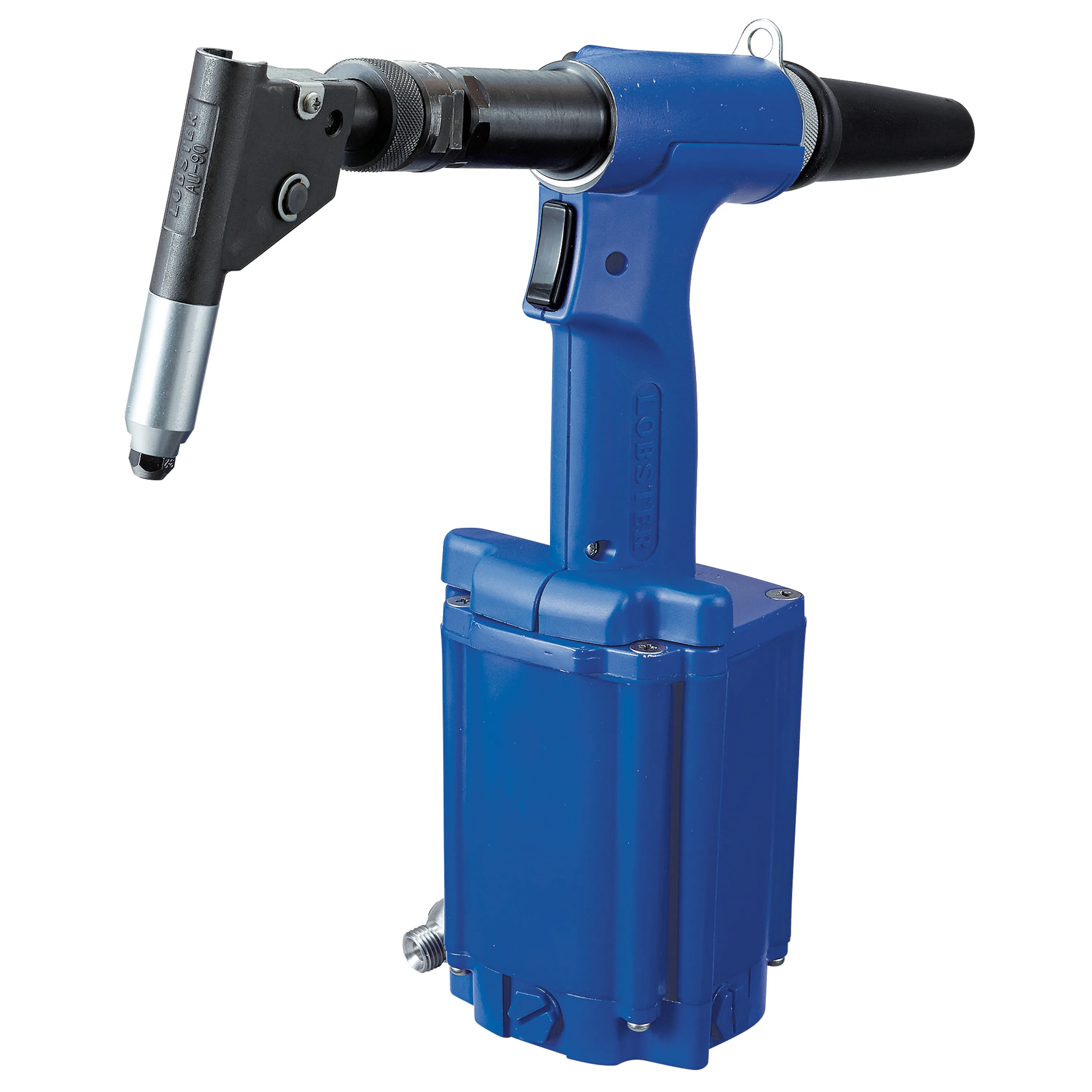

Lobster AR2000A-90
Angled type for riveting in a narrow space
Riveting in corners, on obstacles or in areas with poor access

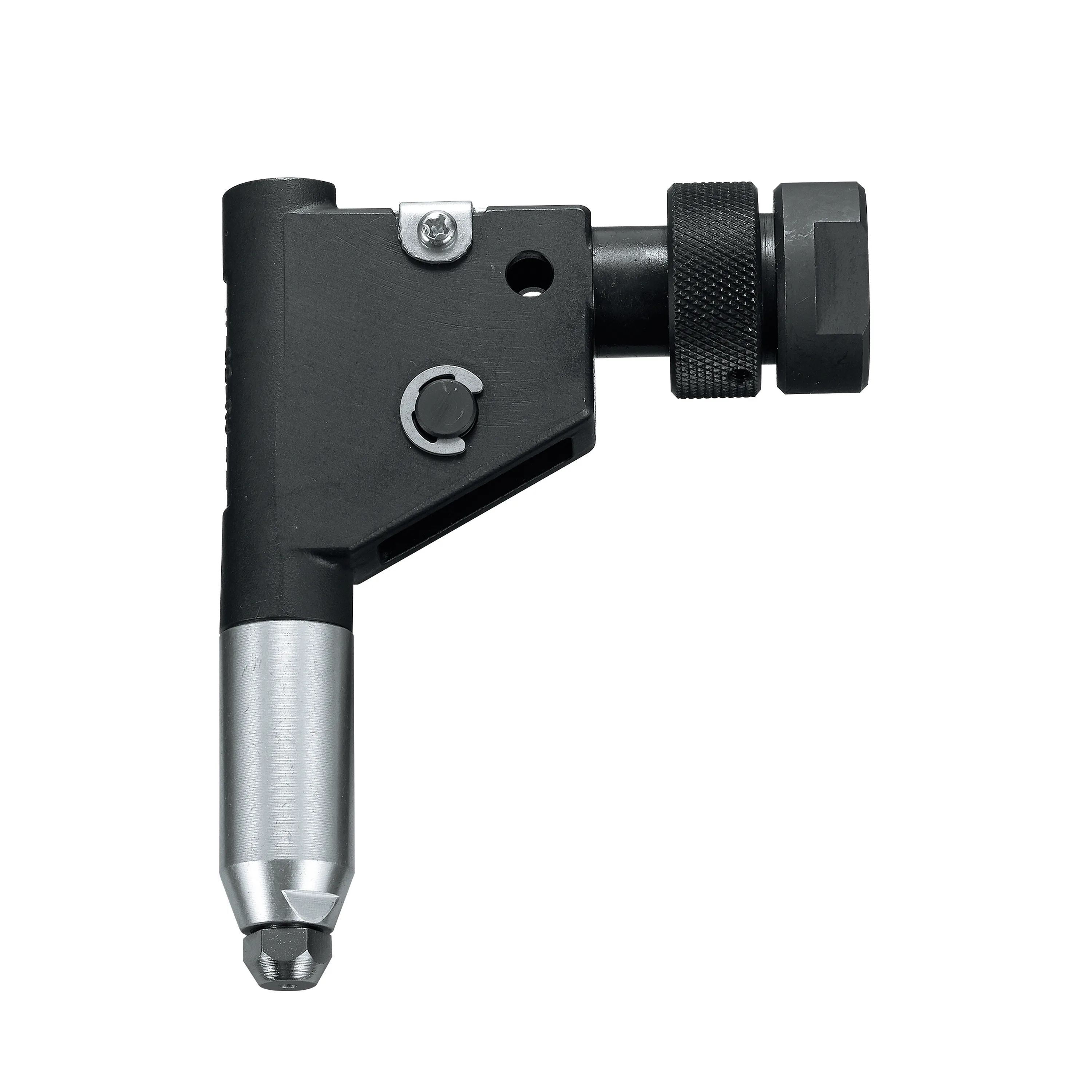

The riveting head can rotate 360 degrees, which allows working with a better tool hold and thus increased production efficiency
| Rivet diameter | Al | St | A2 | Cu | CuNi |
|
2,4 |
x | x | x | x | x |
| 3,0 | x | x | x | x | x |
| 3,2 | x | x | x | x | x |
| 3,4 | x | x | x | x | x |
| 4,0 | x | x | x | x | x |
| 4,8 | x | x | |||
| 6,0 | |||||
| 6,4 | |||||
| 7,8 |
| Model | AR-2000A-90 |
| Stroke | 14 mm |
| Air consumption (l/cycle) | 0,6 |
| Weight | 1,1 kg |
| Diameter of the riveting nose | 17,5 mm |
| Work pressure (MPa) | 0,5-0,6 |
| Tensile | 8,0 kN |
| Riveting range |
2,4/3,2/4,0 for all materials 4,8 except stainless steel |
| Collets | S |
| without shock | Yes |
| Vacuum system | No |
