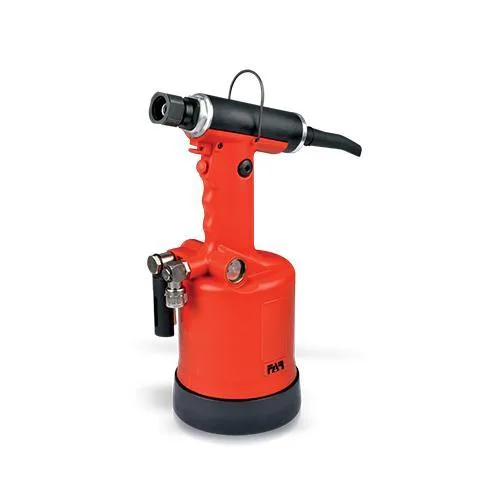

FHU05
A heavy duty tool capable of setting various types of structural rivets.
- Fast operation
- Ideal for high volume production
- For structural rivets in the range of 4.8 mm - 7.8 mm
- Basic tool only "Nose assembly must be purchased separately"
| Model | FHU05 |
| Stroke | 19,5 mm |
| Air pressure (bar) | 6 |
| Weight | 2,65 kg |
| Tensile | 22,555 kN at 6 bar |
| Air consumption (l/cycle) | 10,9 |
| Riveting range | 4,8 mm - 7,8 mm |
| The minimum inside diameter of the compressed air supply hose | 8 mm |
