Catalog

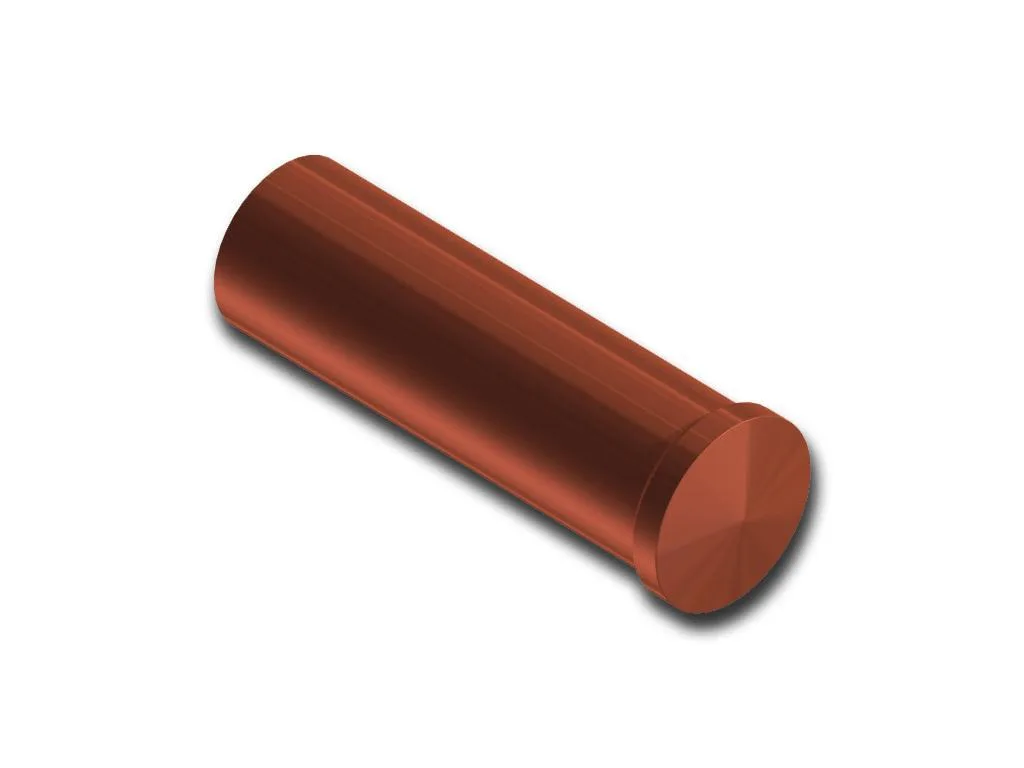

Unthreaded stud type US

Unthreaded stud

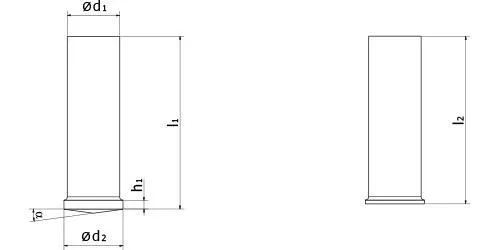

us nakres

* - For the use of sheets with thickness of 2mm and above and for welding times longer than 60 ms, the angle α can be increased up to 14°.

Click here to select the tool for application of welding studs.

Dimmensions

Code

D1

L1

h

D2±0,2

α±1°*

Steel copper plated

Stainless steel A2-50

3

6

0,7 - 1,4

4,0

7°

6114103006

6124103006

8

6114103008

6124103008

10

6114103010

6124103010

12

6114103012

6124103012

16

6114103016

6124103016

20

6114103020

6124103020

25

6114103025

6124103025

30

6114103030

6124103030

4

6

0,7 - 1,4

5,0

7°

6114104006

6124104006

8

6114104008

6124104008

10

6114104010

6124104010

12

6114104012

6124104012

16

6114104016

6124104016

20

6114104020

6124104020

25

6114104025

6124104025

30

6114104030

6124104030

5

8

0,7 - 1,4

6,0

7°

6114105008

6124105008

10

6114105010

6124105010

12

6114105012

6124105012

16

6114105016

6124105016

20

6114105020

6124105020

25

6114105025

6124105025

30

6114105030

6124105030

6

8

0,7 - 1,4

7,0

7°

6114106008

6124106008

10

6114106010

6124106010

12

6114106012

6124106012

16

6114106016

6124106016

20

6114106020

6124106020

25

6114106025

6124106025

30

6114106030

6124106030

7,1

10

0,8 - 1,4

9,0

7°

6114107110

6124107110

12

6114107112

6124107112

16

6114107116

6124107116

20

6114107120

6124107120

25

6114107125

6124107125

30

6114107130

6124107130

8

16

0,8 - 1,4

9,0

7°

6114108016

6124108016

20

6114108020

6124108020

25

6114108025

6124108025

30

6114108030

6124108030

35

6114108035

6124108035

40

6114108040

6124108040
