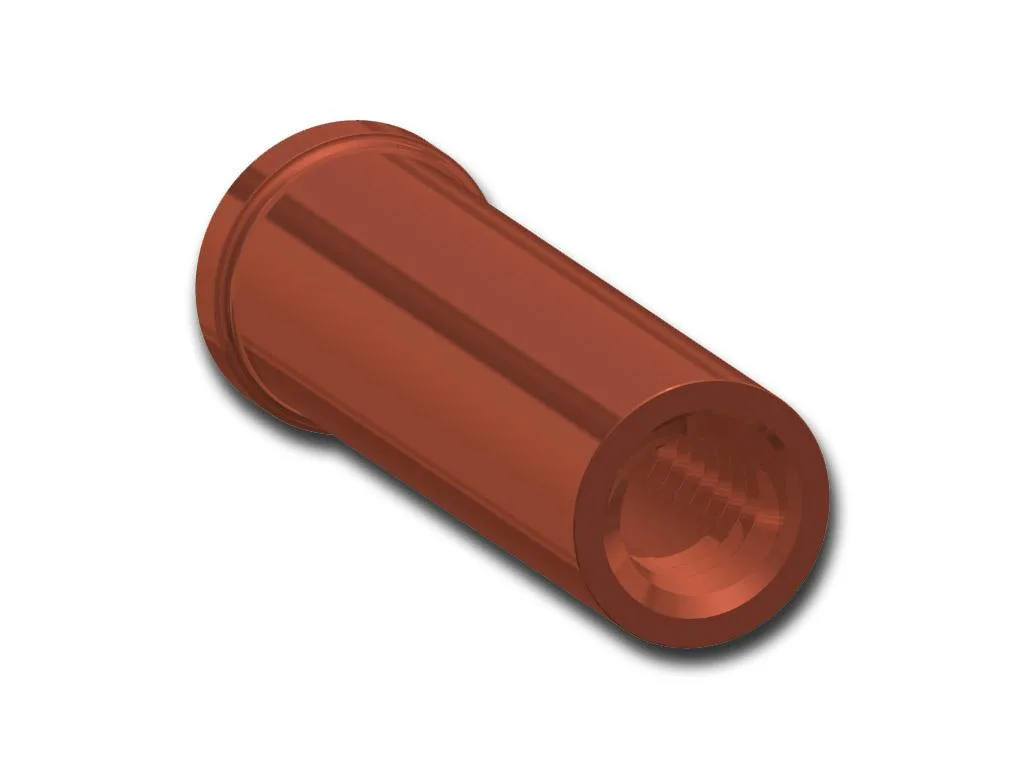

Welding stud with internal thread typ IS
Welding stud with internal thread
* - For the use of sheets with thickness of 2mm and above and for welding times longer than 60 ms, the angle α can be increased up to 14°.
** - at L1 8-12mm is Bmin 5mm
Click here to select the tool for application of welding studs.
|

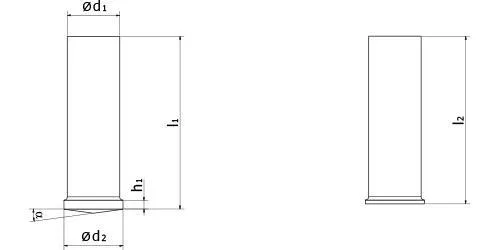

Dimmensions |
Code |
|||||||
|
D6 |
d1±0,1 |
l1±0,1 |
h1 |
d2±0,2 |
bmin |
α±1°* |
Steel copper plated |
Stainless steel A2-50 |
|
M3 |
5,0 |
8 |
0,7 - 1,4 |
6,0 |
5 |
7° |
6114205008 |
6124205008 |
|
10 |
6114205010 |
6124205010 |
||||||
|
12 |
6114205012 |
6124205012 |
||||||
|
16 |
6114205016 |
6124205016 |
||||||
|
20 |
6114205020 |
6124205020 |
||||||
|
M4 |
6,0 |
8 |
0,7 - 1,4 |
7,0 |
6** |
7° |
6114206008 |
6124206008 |
|
10 |
6114206010 |
6124206010 |
||||||
|
12 |
6114206012 |
6124206012 |
||||||
|
16 |
6114206016 |
6124206016 |
||||||
|
20 |
6114206020 |
6124206020 |
||||||
|
M5 |
7,1 |
10 |
0,8 - 1,4 |
9,0 |
10*** |
7° |
6114207110 |
6124207110 |
|
12 |
6114207112 |
6124207112 |
||||||
|
16 |
6114207116 |
6124207116 |
||||||
|
20 |
6114207120 |
6124207120 |
||||||
|
M6 |
8,0 |
16 |
0,8 - 1,4 |
9,0 |
10 |
7° |
6114208016 |
6124208016 |
|
20 |
6114208020 |
6124208020 |
||||||
|
25 |
6114208025 |
6124208025 |
||||||
