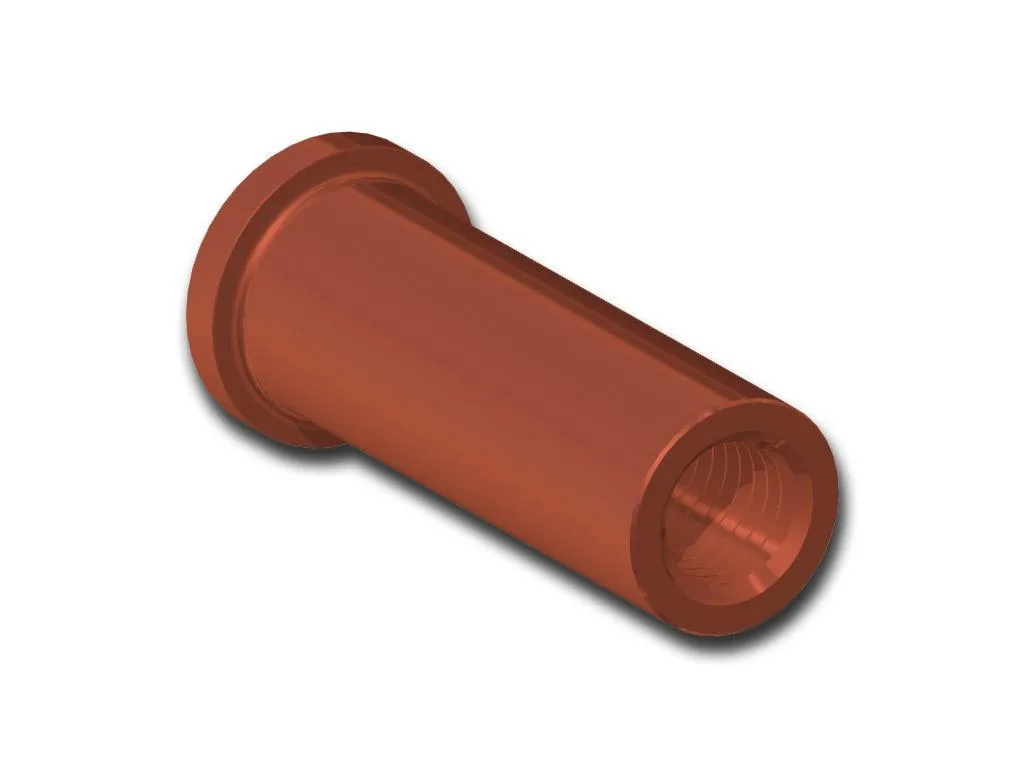

Welding stud with internal thread type IT

Welding stud with internal thread.

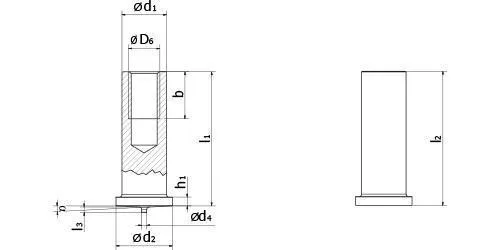

it nakres

* - u L1 = 6 je b = 4mm, u L1 = 7mm je b = 4,5mm / at L1 = 6 is b = 4mm, at L1 = 7mm is b = 4,5mm.

** - u L1 = 8mm je b= 5mm / at L1 8mm is b=5mm.

*** - u L1 = 10mm je b = 6mm / at L1 10mm is b = 5mm.

Click here to select the tool for application of welding studs.

Dimmensions

Code

D1

L1

h

b

D1±0,1

D3±0,2

D4±0,08

L3±0,05

α±1°

Steel copper plated

Stainless steel A2-50

Aluminium AlMg3

M3

6

0,7 - 1,4

5*

5,0

6,5

0,75

0,8

3°

6112005006

6122005006

6102005006

8

6112005008

6122005008

6102005008

10

6112005010

6122005010

6102005010

12

6112005012

6122005012

6102005012

15

6112005015

6122005015

6102005015

16

6112005016

6122005016

6102005016

20

6112005020

6122005020

6102005020

25

6112005025

6122005025

6102005025

30

6112005030

6122005030

6102005030

M4

8

0,7 - 1,4

6**

6,0

7,5

0,75

0,8

3°

6112006008

6122006008

6102006008

10

6112006010

6122006010

6102006010

12

6112006012

6122006012

6102006012

15

6112006015

6122006015

6102006015

16

6112006016

6122006016

6102006016

20

6112006020

6122006020

6102006020

25

6112006025

6122006025

6102006025

30

6112006030

6122006030

6102006030

M5

10

0,8 - 1,4

7,5***

7,1

9,0

0,75

0,85

3°

6112007110

6122007110

6102007110

12

6112007112

6122007112

6102007112

15

6112007115

6122007115

6102007115

16

6112007116

6122007116

6102007116

20

6112007120

6122007120

6102007120

25

6112007125

6122007125

6102007125

30

6112007130

6122007130

6102007130

M6

10

0,8 - 1,4

9

8,0

9,0

0,75

0,85

3°

6112008010

6122008010

12

6112008012

6122008012

15

6112008015

6122008015

16

6112008016

6122008016

20

6112008020

6122008020

25

6112008025

6122008025

30

6112008030

6122008030

M8

15

1,8 - 2,5

10

10,8

11,2

0,75

0,85

3°

6112010015

6122010015

16

6112010016

6122010016

20

6112010020

6122010020

25

6112010025

6122010025

30

6112010030

6122010030

35

6112010035

6122010035

40

6112010040

6122010040
