RPD

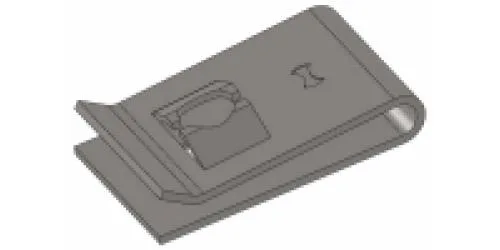

U-nut type RPD
◊ in the code replace with the required surface adjustment.
|

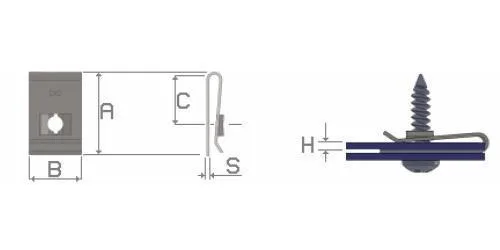

Code |
Screw |
A |
B |
C |
S |
H |

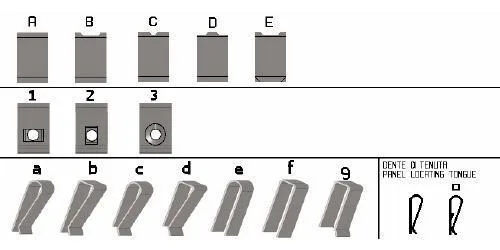

Shape |
Availability |
|
912504P1007535◊ |
4P (2,9mm) |
10,5 |
7,5 |
4,0 |
0,5 |
3,5 - 4,0 |
A2d |
On request |
|
912504P1010017◊ |
4P (2,9mm) |
10,5 |
10,0 |
4,0 |
0,4 |
1,7 |
A2c□ |
On request |
|
912504P1108003◊ |
4P (2,9mm) |
11,0 |
8,0 |
4,0 |
0,5 |
0,3 - 1,2 |
B2a□ |
On stock |
|
912506P1109003◊ |
6P (3,5mm) |
11,2 |
9,0 |
5,7 |
0,5 |
0,3 - 1,5 |
B2a□ |
On stock |
|
912506P1109025◊ |
6P (3,5mm) |
11,2 |
9,0 |
5,7 |
0,6 |
2,5 |
B2a□ |
On request |
|
912506P1209020◊ |
6P (3,5mm) |
11,8 |
9,0 |
5,5 |
0,6 |
2,0 |
A2a□ |
On request |
|
912506P1209029◊ |
6P (3,5mm) |
11,8 |
9,0 |
5,5 |
0,6 |
2,9 |
A2a□ |
On request |
|
912506P1209030◊ |
6P (3,5mm) |
11,8 |
9,0 |
5,5 |
0,6 |
3,0 |
B2a□ |
On request |
|
912506P1212010◊ |
6P (3,5mm) |
12,0 |
12,0 |
5,0 |
0,6 |
1,0 - 2,0 |
C2a□ |
On request |
|
912506P1213044◊ |
6P (3,5mm) |
12,2 |
13,0 |
4,3 |
0,4 |
4,4 |
A1g |
On request |
|
912506P1509014◊ |
6P (3,5mm) |
14,7 |
9,0 |
6,7 |
0,5 |
1,4 - 2,5 |
B2a□ |
On request |
|
912506P1512003◊ |
6P (3,5mm) |
14,8 |
12,0 |
7,3 |
0,5 |
0,3 - 2,0 |
E1a□ |
On request |
|
912506P1512010◊ |
6P (3,5mm) |
15,0 |
12,0 |
6,5 |
0,6 |
1,0 - 2,0 |
B1a |
On request |
|
912506P1512015◊ |
6P (3,5mm) |
15,0 |
12,0 |
6,5 |
0,6 |
1,5 - 2,5 |
B1a |
On request |
|
912506P1610025◊ |
6P (3,5mm) |
16,5 |
10,0 |
7,9 |
0,6 |
2,5 - 3,5 |
A2a□ |
On request |
|
912506P1610025I |
6P (3,5mm) |
16,5 |
10,0 |
7,9 |
0,6 |
2,5 - 3,5 |
A2a□ |
On request |
|
912506P1611003◊ |
6P (3,5mm) |
16,0 |
11,0 |
7,5 |
0,6 |
0,3 - 2,0 |
C2a□ |
On request |
|
912508P1009018◊ |
8P (4,2mm) |
10,5 |
9,0 |
4,5 |
0,6 |
1,8 |
A2e□ |
On request |
|
912508P1109003◊ |
8P (4,2mm) |
11,2 |
9,0 |
5,7 |
0,5 |
0,3 - 1,5 |
B2a□ |
On request |
|
912508P1109003I |
8P (4,2mm) |
11,2 |
9,0 |
5,7 |
0,5 |
0,3 - 1,5 |
B2a□ |
On request |
|
912508P1209030◊ |
8P (4,2mm) |
11,8 |
9,0 |
5,5 |
0,6 |
3,0 |
A2a□ |
On request |
|
912508P1311025◊ |
8P (4,2mm) |
13,0 |
11,0 |
5,0 |
0,5 |
2,5 - 3,0 |
A2a□ |
On request |
|
912508P1412003◊ |
8P (4,2mm) |
14,8 |
12,0 |
7,2 |
0,6 |
0,3 - 1,1 |
B1a□ |
On request |
|
912508P1412003DC◊ |
8P (4,2mm) |
14,8 |
12,0 |
7,2 |
0,6 |
0,3 - 1,1 |
B1a |
On request |
|
912508P1412006◊ |
8P (4,2mm) |
14,8 |
12,0 |
7,2 |
0,6 |
0,6 - 2,0 |
B1a□ |
On request |
|
912508P1512003◊ |
8P (4,2mm) |
15,0 |
12,0 |
7,9 |
0,5 |
0,3 - 1,5 |
B1a□ |
On request |
|
912508P1512010◊ |
8P (4,2mm) |
14,8 |
12,0 |
7,6 |
0,5 |
1,0 - 2,0 |
B1a□ |
On request |
|
912508P1512025◊ |
8P (4,2mm) |
15,5 |
12,0 |
7,0 |
0,6 |
2,5 - 3,2 |
A2a□ |
On request |
|
912508P1611003◊ |
8P (4,2mm) |
16,0 |
11,0 |
7,5 |
0,6 |
0,3 - 2,0 |
C2a□ |
On request |
|
912508P1611010◊ |
8P (4,2mm) |
16,0 |
11,0 |
7,8 |
0,6 |
1,0 - 2,0 |
C2a□ |
On request |
|
912508P1610018◊ |
8P (4,2mm) |
16,5 |
10,0 |
7,9 |
0,6 |
1,8 - 3,0 |
A2a□ |
On request |
|
912508P1610025◊ |
8P (4,2mm) |
16,5 |
10,0 |
7,9 |
0,6 |
2,5 - 3,5 |
A2a□ |
On stock |
|
912508P1611040◊ |
8P (4,2mm) |
16,0 |
11,0 |
7,4 |
0,6 |
4,0 |
A2b |
On request |
|
912508P1612010◊ |
8P (4,2mm) |
16,5 |
12,0 |
6,0 |
0,7 |
1,0 - 2,0 |
B2b□ |
On request |
|
912508P1711015◊ |
8P (4,2mm) |
17,5 |
11,0 |
6,8 |
0,6 |
1,5 - 2,0 |
C2a |
On request |
|
912508P1711020◊ |
8P (4,2mm) |
17,0 |
11,0 |
6,8 |
0,6 |
2,0 - 3,0 |
C2a |
On request |
|
912508P2012003◊ |
8P (4,2mm) |
20,0 |
12,0 |
5,5 |
0,7 |
0,3 - 2,0 |
B2a□ |
On request |
|
912508P2110040◊ |
8P (4,2mm) |
21,0 |
10,0 |
9,0 |
0,6 |
4,0 - 6,0 |
A2b |
On request |
|
912508P2411003◊ |
8P (4,2mm) |
24,5 |
11,0 |
14,5 |
0,6 |
0,3 - 1,5 |
C2a□ |
On request |
|
912508P2411025◊ |
8P (4,2mm) |
23,7 |
11,0 |
14,0 |
0,7 |
2,5 - 4,0 |
C2a□ |
On request |
|
912510P1210015◊ |
10P (4,8mm) |
12,0 |
10,0 |
4,5 |
0,6 |
1,5 |
A2e□ |
On request |
|
912510P1216010◊ |
10P (4,8mm) |
12,0 |
16,0 |
4,5 |
0,7 |
1,0 - 2,0 |
B1c□ |
On request |
|
912510P1512003◊ |
10P (4,8mm) |
15,0 |
12,0 |
7,3 |
0,7 |
0,3 - 1,5 |
B1a□ |
On request |
|
912510P1512003DC◊ |
10P (4,8mm) |
15,0 |
12,0 |
7,3 |
0,7 |
0,3 - 1,5 |
Ba1 |
On request |
|
912510P1512005◊ |
10P (4,8mm) |
15,0 |
12,0 |
7,3 |
0,7 |
0,5 - 2,0 |
B1a□ |
On request |
|
912510P1512013◊ |
10P (4,8mm) |
15,0 |
12,0 |
7,3 |
0,7 |
1,3 - 1,5 |
B1a□ |
On request |
|
912510P1512018◊ |
10P (4,8mm) |
14,8 |
12,0 |
7,3 |
0,7 |
1,8 - 2,2 |
B2a□ |
On request |
|
912510P1512025◊ |
10P (4,8mm) |
15,5 |
12,0 |
7,0 |
0,7 |
2,5 - 3,7 |
A1a |
On request |
|
912510P1512025I |
10P (4,8mm) |
15,5 |
12,0 |
7,0 |
0,7 |
2,5 - 3,2 |
A1a□ |
On request |
|
912510P1512030◊ |
10P (4,8mm) |
15,5 |
12,0 |
7,0 |
0,7 |
3,0 - 3,7 |
A2a□ |
On request |
|
912510P1616035◊ |
10P (4,8mm) |
16,5 |
16,0 |
8,0 |
0,5 |
3,5 |
B1a |
On request |
|
912510P1711035◊ |
10P (4,8mm) |
17,2 |
11,0 |
9,3 |
0,7 |
3,5 |
A3f |
On request |
|
912510P1716003◊ |
10P (4,8mm) |
17,0 |
16,0 |
8,3 |
0,5 |
0,3 - 1,5 |
B1a |
On request |
|
912510P1811010◊ |
10P (4,8mm) |
17,8 |
11,0 |
8,2 |
0,5 |
1,0 - 3,0 |
B3a□ |
On request |
|
912510P1912003◊ |
10P (4,8mm) |
19,5 |
12,0 |
8,0 |
0,7 |
0,3 - 2,0 |
A2a□ |
On request |
|
912510P3012003◊ |
10P (4,8mm) |
29,6 |
12,0 |
20,6 |
0,6 |
0,3 - 2,5 |
C2a□ |
On request |
|
912512P2615003◊ |
12P (5,5mm) |
26,0 |
15,0 |
11,5 |
0,8 |
0,3 - 3,0 |
C2a□ |
On stock |
|
912506M2514015◊ |
14P (6,3mm)/M6 |
25,5 |
14,0 |
11,5 |
0,5 |
1,5 - 2,5 |
A2a□ |
On request |
|
912514P2716056◊ |
14P (6,3mm)/M6 |
27,0 |
16,0 |
12,9 |
0,6 |
5,6 |
A2b |
On request |
|
912504M1612003◊ |
M4 |
16,0 |
12,0 |
8,5 |
0,4 |
0,3 - 1,5 |
B1a |
On request |
|
912505M1612000◊ |
M5 |
15,7 |
12,0 |
6,0 |
0,4 |
0,0 - 3,0 |
A2a |
On request |
|
912505M1612010◊ |
M5 |
15,7 |
12,0 |
6,0 |
0,4 |
1,0 - 3,0 |
A2a |
On request |
|
912506M1616003◊ |
M6 |
16,5 |
16,0 |
7,5 |
0,5 |
0,3 - 1,5 |
B1a |
On request |
| ◊ in the code replace with the required surface adjustment. | Description | Example |
| Washer none-self finish | 912504P1007535 | |
| B | Washer white zinc plated | 912504P1007535B |
