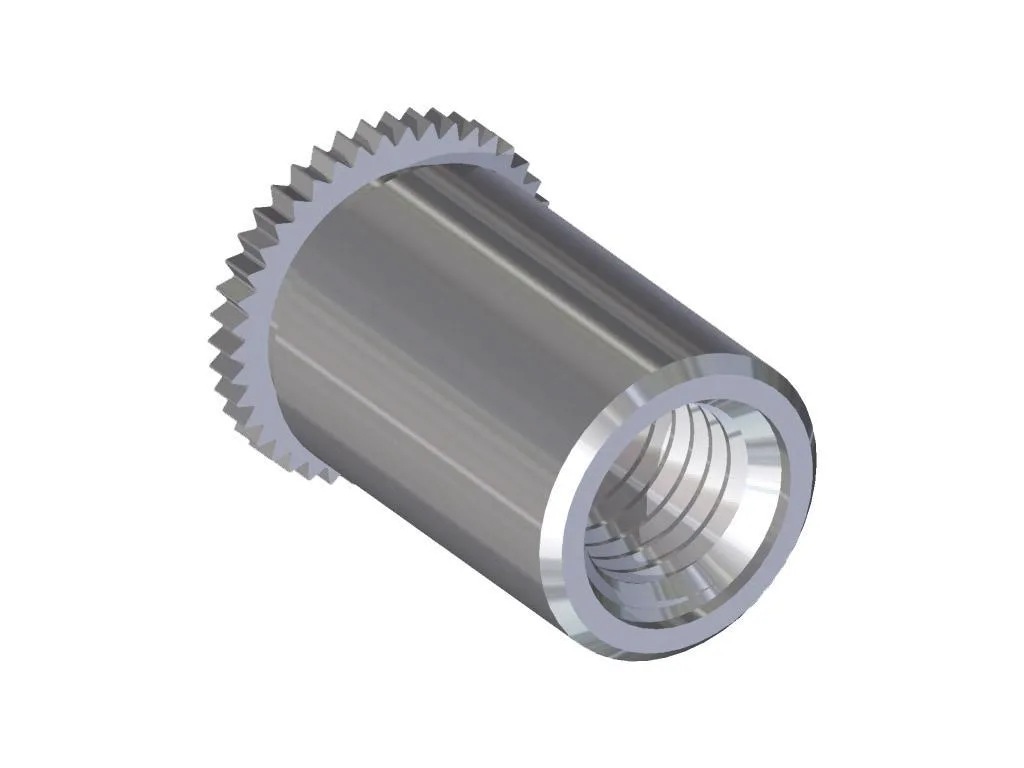

S-DSO, S-DSOS
Screw lock threaded standoff.
S-DSO - steel
S-DSOS - stainless steel series 300

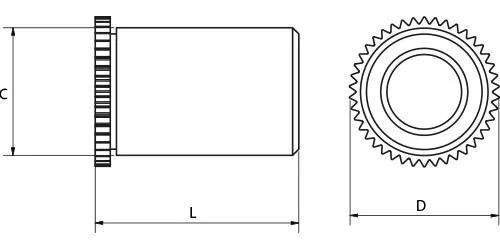

Marking dimensions:
S min - minimum sheet thickness
d - diameter of the hole
m - minimum distance from center of the hole to the edge of the sheet
Click here to select the tool for application of self-clinching fasteners.
|
Thread |
L+0,05/-0,13 |
Cmax |
Dnom |
Smin |
d+0,08/-0 |
m |
S-DSO Steel |
S-DSOS Stainless steel ser. 300 |
|
M3 |
7 |
4,2 |
4,92 |
0,94 - 6,35 |
4,2 |
3,2 |
6213303007 |
6223303007 |
