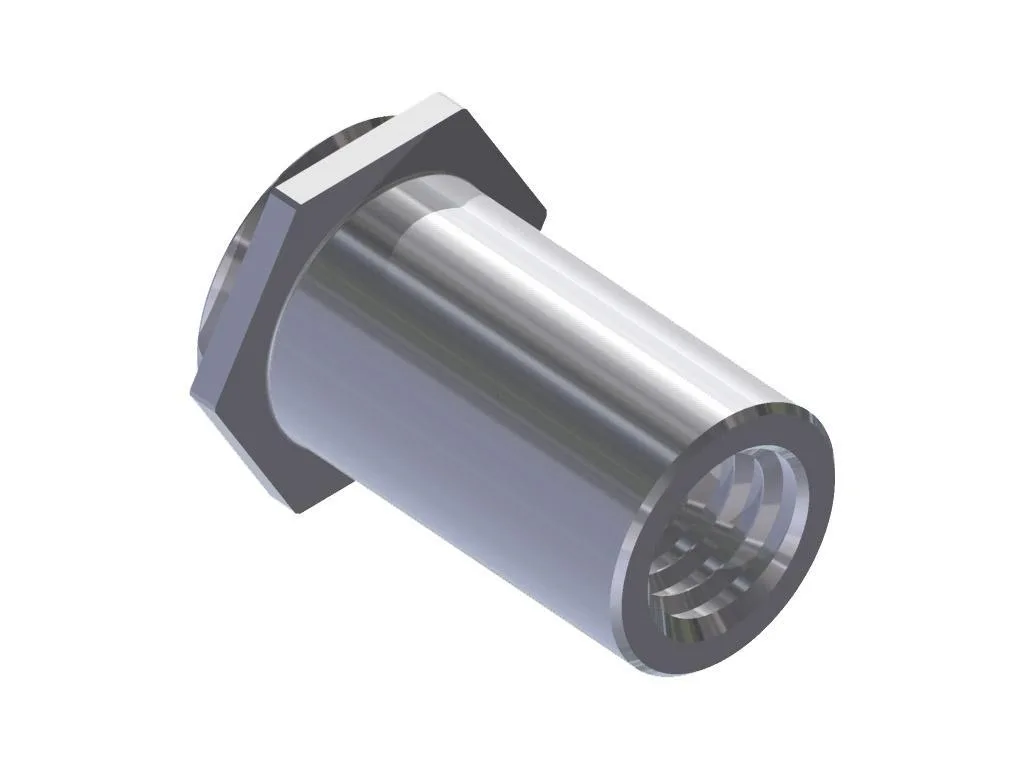

Self-clinch concealed head standoff.

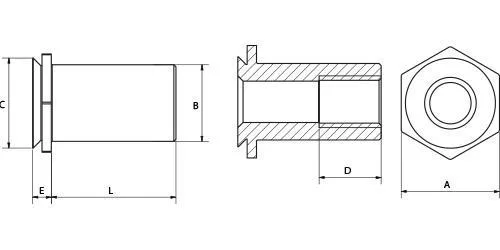

Marking dimensions:
S min - minimum sheet thickness
d - diameter of the hole
m - minimum distance from center of the hole to the edge of the sheet
Click here to select the tool for application of self-clinching fasteners.
|
Thread |
L±0,4 |
Amax |
D |
B |
C |
Blind mountning hole +0,08/-0 |
m |
d+0,08/-0 |
Hole depth |
Smin |
S-CSOS Stainless steel ser. 300 |
|
M3 |
4 |
6,35 |
5,0 |
4,2 |
5,39 |
5,41 |
4,8 |
5,41 |
1,91 |
2,4 |
6223603004 |
|
6 |
6223603006 |
||||||||||
|
8 |
6223603008 |
||||||||||
|
10 |
6223603010 |
||||||||||
|
12 |
6223603012 |
||||||||||
|
16 |
6223603016 |
||||||||||
|
20 |
6223603020 |
||||||||||
|
M4 |
6 |
8,73 |
6,5 |
6,23 |
7,9 |
7,92 |
6,4 |
7,92 |
1,91 |
2,4 |
6223604006 |
|
8 |
6223604008 |
