S-MF, S-MFS

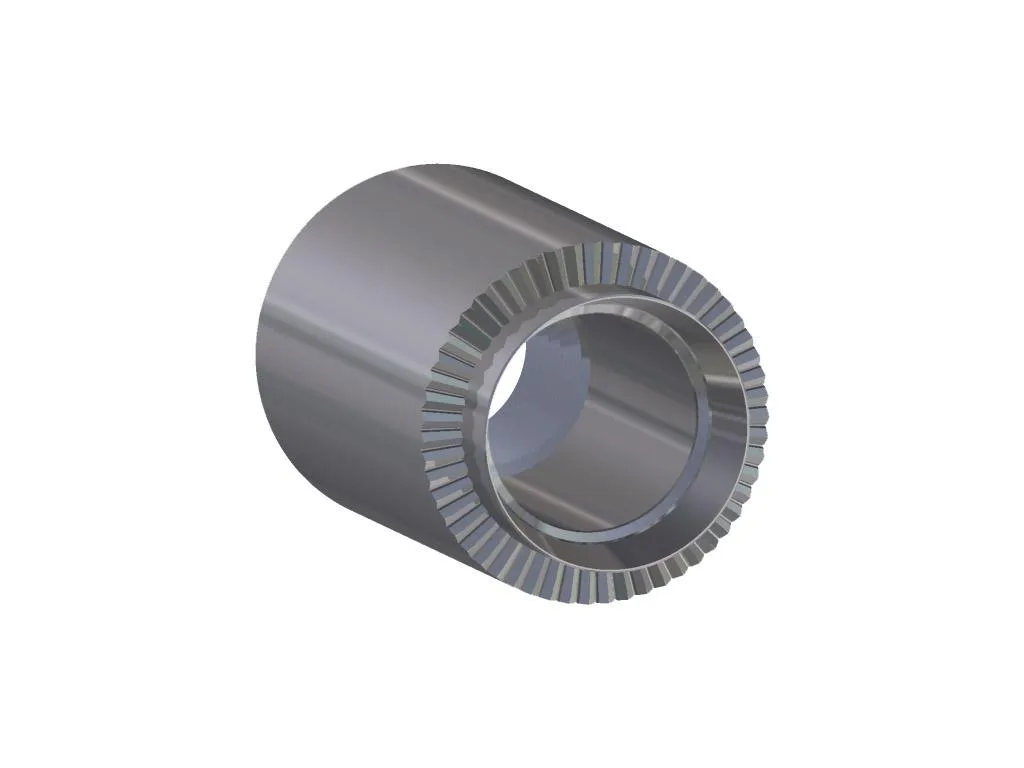

Serrated face mini rivet bush standoff.

S-MF   - steel
S-MFS - stainless steel series 300

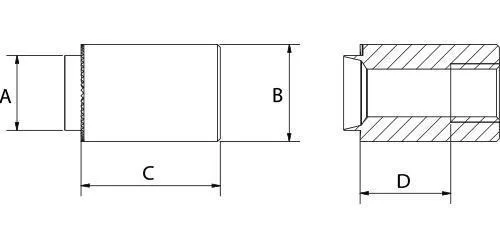

Marking dimensions:
S min - minimum sheet thickness
d         - diameter of the hole
m        - minimum distance from center of the hole to the edge of the sheet

smins mf nakres

XX - replace with lenght, YY - replace with SWG for required sheet thickness

Click here to select the tool for application of self-clinching fasteners.

Thread

A+0/-0,13

B±0,15

d+0,05/-0

S-MF Steel

S-MFS Stainless steel ser. 300

M2

3,50

5,00

3,50

62142020XXYY

62242020XXYY

M2,5

4,19

5,50

4,19

62142025XXYY

62242025XXYY

M3

4,19

5,50

4,19

62142030XXYY

62242030XXYY

M3,5

5,41

7,00

5,41

62142035XXYY

62242035XXYY

M4

5,41

7,00

5,41

62142040XXYY

62242040XXYY

M5

6,40

8,50

6,40

62142050XXYY

62242050XXYY

M6

7,70

10,00

7,70

62142060XXYY

62242060XXYY

M8

9,70

12,00

9,70

62142080XXYY

62242080XXYY

M10

12,70

16,00

12,70

62142100XXYY

62242100XXYY

M12

15,87

19,00

15,87

62142120XXYY

62242120XXYY

C±0,13

8-10mm

11-13mm

14-16mm

17-22mm

Dnom

3,0mm

6,0mm

9,0mm

12,0mm

Gauge Size (SWG)

24

22

20

18

16

14

12

10

Sheet thickness (mm)

0,4 - 0,6

0,7 - 08

0,9 - 1,0

1,1 - 1,4

1,5 - 1,7

1,8 - 2,2

2,3 - 2,8

2,9 - 3,4
