S-HS, S-HSS

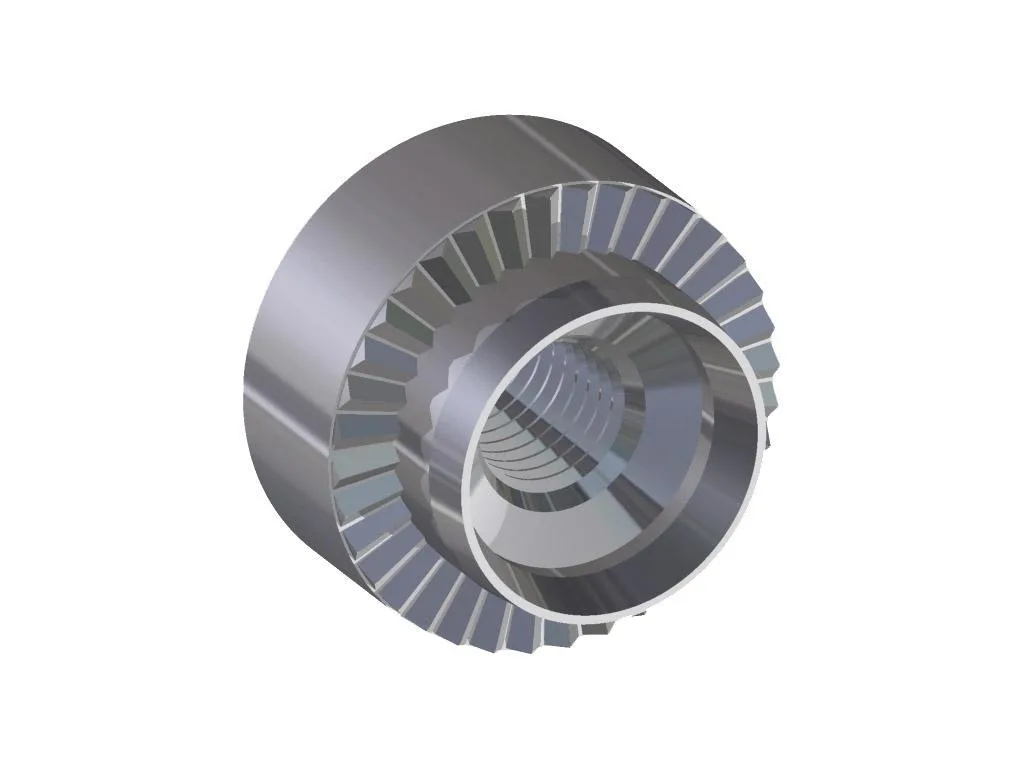

Serrated face rivet bush.
S-HS - steel
S-HSS - stainless steel series 300

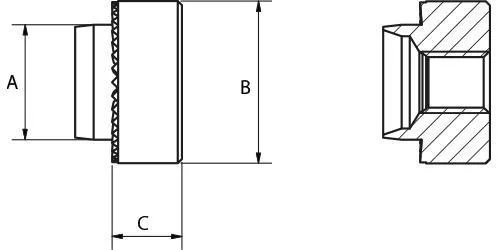

Marking dimensions:
S min - minimum sheet thickness
d - diameter of the hole
m - minimum distance from center of the hole to the edge of the sheet
XX in the code replace with SWG for required sheet thickness.
Click here to select the tool for application of self-clinching fasteners.
|
Thread |
A+0/-0,13 |
B±0,15 |
C±0,13 |
d+0,05/-0 |
S-HS Steel |
S-HSS Stainless steel ser. 300 |
|
M2,5 |
5,54 |
7,92 |
3,17 |
5,54 |
621140025XX |
622140025XX |
|
M3 |
5,54 |
7,92 |
3,17 |
5,54 |
621140030XX |
622140030XX |
|
M3,5 |
6,73 |
9,52 |
3,17 |
6,73 |
621140035XX |
622140035XX |
|
M4 |
6,73 |
9,52 |
3,17 |
6,73 |
621140040XX |
622140040XX |
|
M5 |
7,92 |
11,10 |
3,81 |
7,92 |
621140050XX |
622140050XX |
|
M6 |
9,52 |
12,70 |
5,08 |
9,52 |
621140060XX |
622140060XX |
|
M8 |
12,70 |
15,87 |
6,35 |
12,70 |
621140080XX |
622140080XX |
|
M10 |
15,87 |
19,05 |
7,62 |
15,87 |
621140100XX |
622140100XX |
|
M12 |
19,05 |
25,40 |
10,16 |
19,05 |
621140120XX |
622140120XX |
|
Gauge size (SWG) |
20 |
18 |
16 |
14 |
12 |
10 |
|
Sheet thickness (mm) |
0,9 - 1,0 |
1,1 - 1,4 |
1,5 - 1,7 |
1,8 - 2,2 |
2,3 - 2,8 |
2,9 - 3,4 |
