S-KFE, S-KFSE

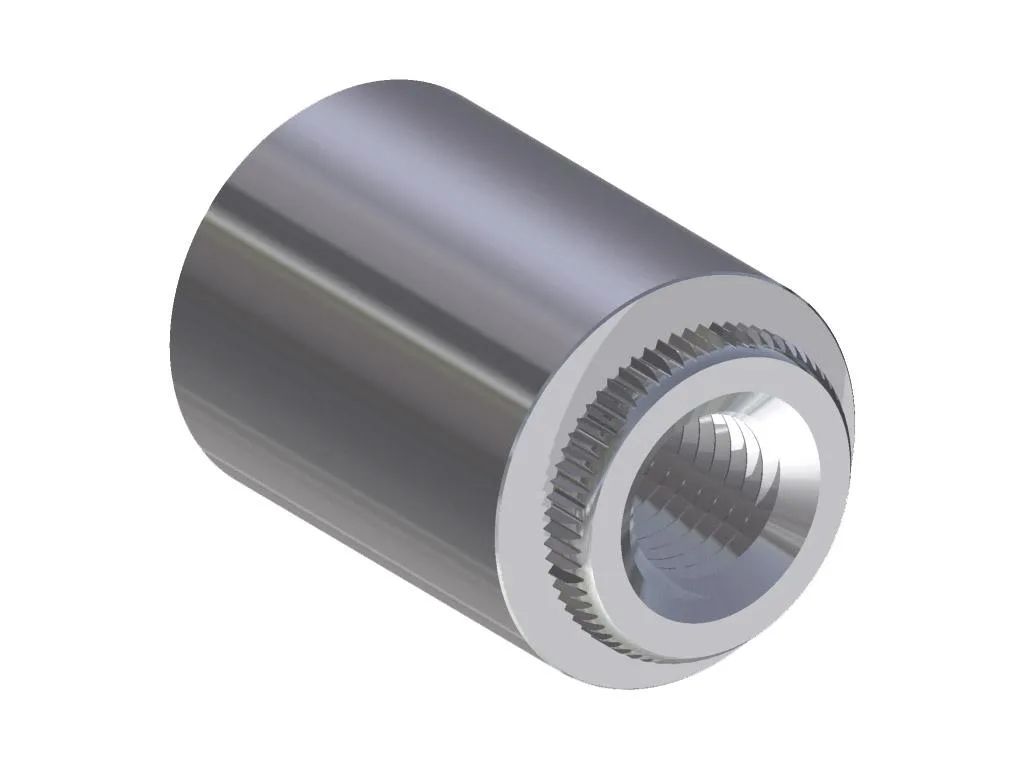

Self-clinch broaching standoff.
S-KFE - electro tin plated steel
S-KFSE - stainless steel series 300

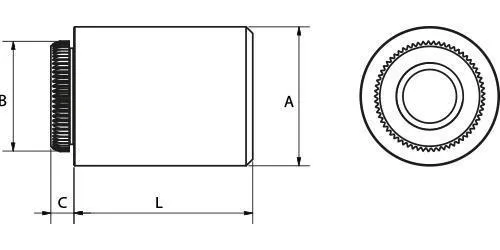

Marking dimensions:
S min - minimum sheet thickness
d - diameter of the hole
m - minimum distance from center of the hole to the edge of the sheet
Click here to select the tool for application of self-clinching fasteners.
|
Thread |
L±0,13 |
Cmax |
B |
A |
Smin |
d+0,08/-0 |
m |
S-KFE Steel |
S-KFSE Stainless steel ser. 300 |
|
M3 |
3 |
1,53 |
4,68 |
5,56 |
1,53 |
4,22 |
4,4 |
6217603003 |
6227603003 |
|
4 |
6217603004 |
6227603004 |
|||||||
|
5 |
6217603005 |
6227603005 |
|||||||
|
6 |
6217603006 |
6227603006 |
|||||||
|
8 |
6217603008 |
6227603008 |
|||||||
|
10 |
6217603010 |
6227603010 |
|||||||
|
12 |
6217603012 |
6227603012 |
|||||||
|
14 |
6217603014 |
6227603014 |
