S-KF2, S-KFS2

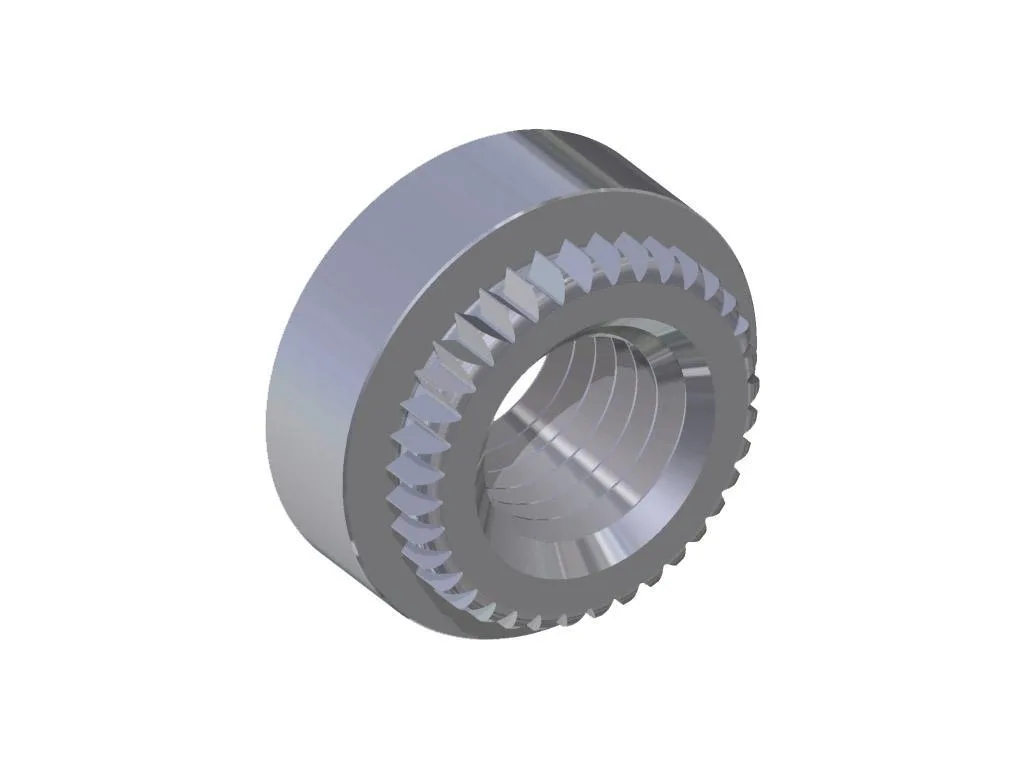

Self-clinch broaching nut.
S-KF2 - electro tin plated steel
S-KFS2 - stainless steel series 300

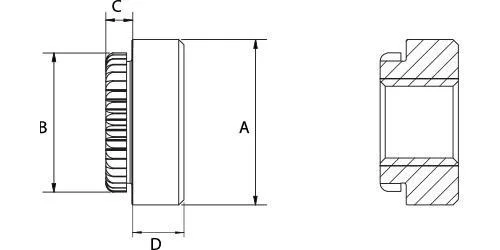

Marking dimensions:
S min - minimum sheet thickness
d - diameter of the hole
m - minimum distance from center of the hole to the edge of the sheet
Click here to select the tool for application of self-clinching fasteners.
|
Thread |
B±0,08 |
A±0,13 |
Cmax |
D±0,13 |
Smin |
d+0,08/-0 |
m |
S-KF2 Electro tin plated steel |
S-KFS2 Stainless steel ser. 300 |
|
M2 |
4,19 |
5,56 |
1,53 |
1,5 |
1,53 |
3,73 |
4,2 |
6217800200 |
6227800200 |
|
M2,5 |
4,68 |
5,56 |
1,53 |
1,5 |
1,53 |
4,22 |
4,4 |
6217800250 |
6227800250 |
|
M3 |
4,68 |
5,56 |
1,53 |
1,5 |
1,53 |
4,22 |
4,4 |
6217800300 |
6227800300 |
|
M3,5 |
5,88 |
7,0 |
1,53 |
1,6 |
1,53 |
5,5 |
5,5 |
6217800350 |
6227800350 |
|
M4 |
6,86 |
8,74 |
1,53 |
2,0 |
1,53 |
6,4 |
6,4 |
6217800400 |
6227800400 |
|
M5 |
7,37 |
9,53 |
1,53 |
3,0 |
1,53 |
6,9 |
7,1 |
6217800500 |
6227800500 |
