Al/St

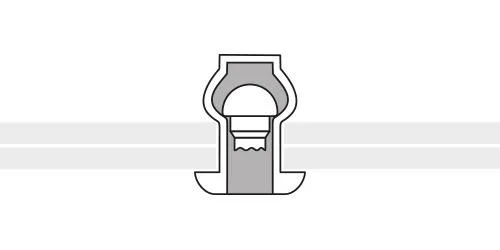

Aluminium sealed blind rivet with dome head and steel mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,2 | 6,5 | 6,0 | 0,5 - 2,0 | 1 245 | 1 070 | 3,3 | 1017003206 |
| 08 | 2,0 - 3,5 | 1017003208 | |||||
| 9,5 | 3,5 - 5,0 | 1017003209 | |||||
| 10,5 | 5,0 - 6,5 | 1017003210 | |||||
| 12,5 | 6,5 - 8,0 | 1017003212 | |||||
| 4,0 | 08 | 8,0 | 0,5 - 3,5 | 2 240 | 1 710 | 4,1 | 1017004008 |
| 9,5 | 3,5 - 4,5 | 1017004009 | |||||
| 11 | 4,5 - 6,5 | 1017004011 | |||||
| 12 | 6,5 - 8,0 | 1017004012 | |||||
| 15 | 8,0 - 10,5 | 1017004015 | |||||
| 4,8 | 08 | 9,5 | 1,0 - 3,0 | 3 070 | 2 230 | 4,9 | 1017004808 |
| 9,5 | 3,0 - 4,5 | 1017004809 | |||||
| 10 | 3,5 - 5,0 | 1017004810 | |||||
| 11 | 4,5 - 6,0 | 1017004811 | |||||
| 12,5 | 6,0 - 7,5 | 1017004812 | |||||
| 14 | 7,5 - 9,0 | 1017004814 | |||||
| 16 | 9,0 - 11,0 | 1017004816 | |||||
| 18 | 11,0 - 13,0 | 1017004818 | |||||
| 21 | 13,0 - 16,0 | 1017004821 | |||||
| 25 | 16,0 - 20,0 | 1017004825 | |||||
| 6,4 | 12,5 | 12,7 | 3,0 - 6,0 | 5 000 | 3 950 | 6,5 | 1017006412 |
| 16 | 6,0 - 9,0 | 1017006416 |
