Al/St

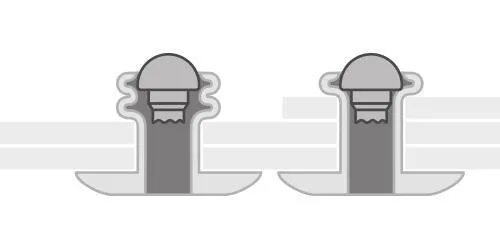

Aluminium multigrip blind rivet with large head and steel mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 4,8 | 10 | 16,0 | 1,0 - 6,0 | 2 200 | 1 500 | 5,0 - 5,2 | 1011304810 |
| 16 | 6,0 - 12,0 | 1011304816 | |||||
| 25 | 13,0 - 20,0 | 1011304825 |
