St/St

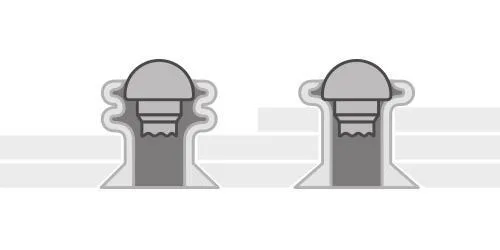

Steel multigrip blind rivet with countersunk head and steel mandrel.
Click here to select the tool for application of blind rivets.

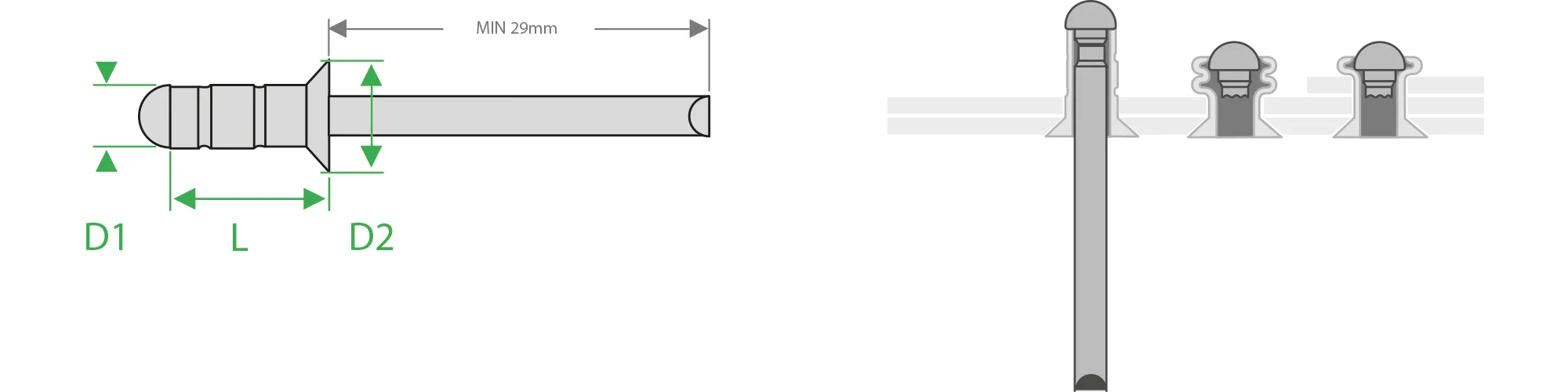

| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 4,8 | 11 | 9,5 | 2,5 - 6,0 | 3 200 | 2 400 | 4,9 | 1111104811 |
| 14 | 3,0 - 9,0 | 1111104814 | |||||
| 17 | 4,0 - 12,0 | 11111048117 | |||||
| 22 | 9,0 - 17,0 | 1111104822 |
