Al/St

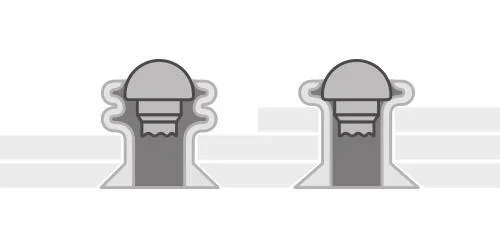

Aluminium multigrip blind rivet with countersunk head and steel mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,2 | 08 | 6,0 | 1,5 - 5,0 | 980 | 680 | 3,3 | 1011103208 |
| 9,7 | 2,4 - 6,4 | 1011103209 | |||||
| 10 | 2,5 - 7,0 | 1011103210 | |||||
| 12 | 4,5 - 9,0 | 1011103212 | |||||
| 14 | 6,5 - 11,0 | 1011103214 | |||||
| 16 | 8,5 - 13,0 | 1011103216 | |||||
| 4,0 | 08 | 8,0 | 1,5 - 5,0 | 1 600 | 1 150 | 4,1 | 1011104008 |
| 10 | 1,5 - 6,,5 | 1011104010 | |||||
| 11,3 | 2,8 - 7,9 | 1011104011 | |||||
| 12 | 3,0 - 8,5 | 1011104012 | |||||
| 14 | 5,0 - 10,5 | 1011104014 | |||||
| 16 | 7,0 - 12,5 | 1011104016 | |||||
| 18 | 9,0 - 14,5 | 1011104018 | |||||
| 20 | 11,0 - 16,5 | 1011104020 | |||||
| 4,8 | 10 | 9,5 | 1,5 - 6,0 | 2 350 | 1 500 | 4,9 | 1011104810 |
| 12 | 2,0 - 8,0 | 1011104812 | |||||
| 14 | 4,0 - 10,0 | 1011104814 | |||||
| 16 | 6,0 - 12,0 | 1011104816 | |||||
| 16,9 | 6,4 - 12,7 | 1011104817 | |||||
| 18 | 8,0 - 14,0 | 1011104818 | |||||
| 20 | 10,0 - 18,0 | 1011104820 | |||||
| 22 | 12,0 - 18,0 | 1011104822 | |||||
| 24 | 14,0 - 20,0 | 1011104824 | |||||
| 27 | 17,0 - 23,0 | 1011104827 | |||||
| 30 | 20,0 - 25,0 | 1011104830 |
