Al/A2

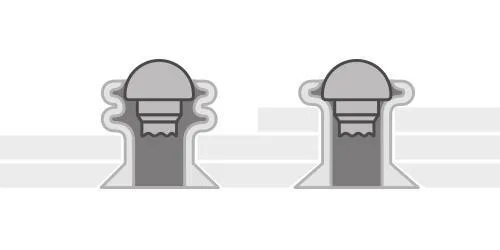

Aluminium multigrip blind rivet with countersunk head and stainless steel mandrel.
Click here to select the tool for application of blind rivets.
D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
3,2 | 08 | 6,0 | 1,5 - 5,0 | 980 | 680 | 3,3 | 1021103208 |
9,7 | 2,4 - 6,4 | 1021103209 | |||||
12,5 | 5,0 - 9,5 | 1021103212 | |||||
4,0 | 9,5 | 8,0 | 2,0 - 6,0 | 1 600 | 1 150 | 4,1 | 1021104009 |
11,3 | 2,8 - 7,9 | 1021104011 | |||||
12,5 | 4,0 - 9,0 | 1021104012 | |||||
17 | 8,5 - 13,5 | 1021104017 | |||||
4,8 | 10 | 9,5 | 2,5 - 5,0 | 2 350 | 1 500 | 4,9 | 1021104810 |
12 | 2,0 - 8,0 | 1021104812 | |||||
15 | 5,0 - 10,0 | 1021104815 | |||||
16,9 | 6,4 - 12,7 | 1021104816 | |||||
20 | 10,0 - 15,0 | 1021104820 |
