Al/St

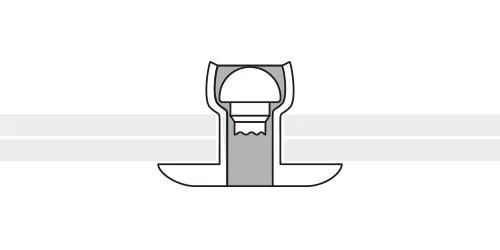

Aluminium blind rivet with extra large head and steel mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,2 | 08 | 10,0 | 3,0 - 5,0 | 1 000 | 750 | 3,3 - 3,4 | 1010303208 |
| 10 | 5,0 - 7,0 | 1010303210 | |||||
| 12 | 7,0 - 9,0 | 1010303212 | |||||
| 14 | 9,0 - 11,0 | 1010303214 | |||||
| 16 | 11,0 - 13,0 | 1010303216 | |||||
| 4,0 | 08 | 12,0 | 2,0 - 4,0 | 1 750 | 1 200 | 4,1 - 4,2 | 1010304008 |
| 10 | 5,0 - 6,5 | 1010304010 | |||||
| 12 | 7,0 - 8,5 | 1010304012 | |||||
| 14 | 8,0 - 10,5 | 1010304014 | |||||
| 16 | 10,0 - 12,5 | 1010304016 | |||||
| 20 | 13,0 - 16,5 | 1010304020 | |||||
| 4,8 | 10 | 16,0 | 4,5 - 6,0 | 2 600 | 1 850 | 4,9 - 5,0 | 1010304810 |
| 12 | 5,5 - 8,0 | 1010304812 | |||||
| 14 | 7,5 - 10,0 | 1010304814 | |||||
| 16 | 9,5 - 12,0 | 1010304816 | |||||
| 18 | 11,5 - 14,0 | 1010304818 | |||||
| 20 | 13,5 - 16,0 | 1010304820 | |||||
| 24 | 15,5 - 18,0 | 1010304824 | |||||
| 26 | 17,5 - 20,0 | 1010304826 | |||||
| 30 | 21,5 - 24,0 | 1010304830 | |||||
| 35 | 25,5 - 31,0 | 1010304835 | |||||
| 40 | 30,5 - 36,0 | 1010304840 | |||||
| 6,4 | 12 | 16,0 | 4,0 - 7,0 | 4 950 | 3 200 | 6,5 - 6,7 | 1010306412 |
| 16 | 6,5 - 10,0 | 1010306416 | |||||
| 20 | 11,0 - 15,0 | 1010306420 |
