Al/Al

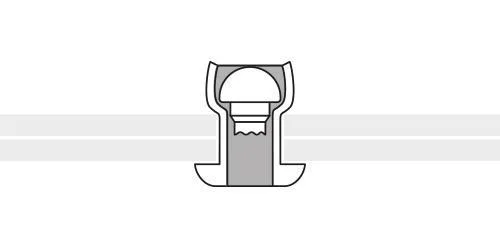

Aluminium blind rivet with dome head and aluminium mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,2 | 06 | 6,5 | 1,0 - 3,0 | 850 | 600 | 3.3 - 3,4 | 1030003206 |
| 08 | 3,0 - 5,0 | 1030003208 | |||||
| 10 | 5,0 - 7,0 | 1030003210 | |||||
| 12 | 7,0 - 9,0 | 1030003212 | |||||
| 4,0 | 06 | 8,0 | 1,0 - 2,5 | 1 200 | 800 | 4,1 - 4,2 | 1030004006 |
| 08 | 3,0 - 4,5 | 1030004008 | |||||
| 10 | 5,0 - 6,5 | 1030004010 | |||||
| 12 | 7,0 - 8,5 | 1030004012 | |||||
| 14 | 8,0 - 10,5 | 1030004014 | |||||
| 16 | 10,0 - 13,0 | 1030004016 | |||||
| 20 | 13,5 - 16,0 | 1030004020 | |||||
| 4,8 | 08 | 9,5 | 2,5 - 4,0 | 2 100 | 1 300 | 4,9 - 5,0 | 1030004808 |
| 10 | 4,5 - 6,0 | 1030004810 | |||||
| 12 | 6,5 - 8,0 | 1030004812 | |||||
| 14 | 7,5 - 10,0 | 1030004814 | |||||
| 16 | 9,5 - 12,0 | 1030004816 | |||||
| 18 | 11,5 - 14,0 | 1030004818 | |||||
| 20 | 13,5 - 16,5 | 1030004820 |
