INFOLINKA
St/St

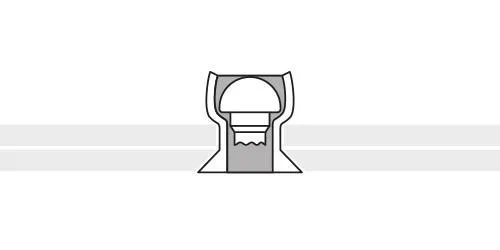

Steel blind rivet with countersunk head and steel mandrel.
Click here to select the tool for application of blind rivets.
D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
3,2 | 06 | 6,0 | 1,0 - 3,0 | 1 500 | 1 100 | 3,3 - 3,4 | 1110103206 |
08 | 3,0 - 5,0 | 1110103208 | |||||
10 | 5,0 - 7,0 | 1110103210 | |||||
4,0 | 08 | 7,5 | 2,5 - 4,5 | 2 500 | 1 800 | 4,1 - 4,2 | 1110104008 |
10 | 4,5 - 6,5 | 1110104010 | |||||
12 | 6,5 - 8,5 | 1110104012 | |||||
14 | 8,5 - 10,5 | 1110104014 | |||||
4,8 | 08 | 9,0 | 2,0 - 4,0 | 3 700 | 2 900 | 4,9 - 5,0 | 1110104808 |
10 | 4,0 - 6,0 | 1110104810 | |||||
12 | 6,0 - 8,0 | 1110104812 | |||||
14 | 7,0 - 9,0 | 1110104814 | |||||
16 | 7,5 - 11,0 | 1110104816 | |||||
20 | 11,0 - 15,0 | 1110104820 |
