Al/Al

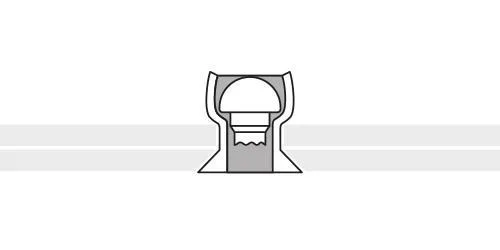

Aluminium blind rivet with countersunk head and aluminium mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,0 | 06 | 6,0 | 1,5 - 3,5 | 550 | 400 | 3,1 | 1030103006 |
| 08 | 3,5 - 5,5 | 1030103008 | |||||
| 10 | 5,5 - 7,0 | 1030103010 | |||||
| 12 | 7,0 - 9,0 | 1030103012 | |||||
| 3,2 | 06 | 6,0 | 1,5 - 3,5 | 670 | 535 | 3,3 | 1030103206 |
| 08 | 3,5 - 5,0 | 1030103208 | |||||
| 10 | 5,0 - 7,0 | 1030103210 | |||||
| 12 | 7,0 - 9,0 | 1030103212 | |||||
| 4,0 | 06 | 7,5 | 1,5 - 3,0 | 1 025 | 845 | 4,1 | 1030104006 |
| 08 | 3,0 - 5,0 | 1030104008 | |||||
| 10 | 5,0 - 6,5 | 1030104010 | |||||
| 12 | 6,5 - 8,5 | 1030104012 | |||||
| 14 | 8,5 - 10,5 | 1030104014 | |||||
| 16 | 10,5 - 12,5 | 1030104016 | |||||
| 4,8 | 06 | 9,0 | 1,0 - 3,5 | 1 420 | 1 150 | 4,9 | 1030104806 |
| 08 | 2,0 - 4,5 | 1030104808 | |||||
| 10 | 4,5 - 6,0 | 1030104810 | |||||
| 12 | 6,0 - 8,0 | 1030104812 | |||||
| 14 | 8,0 - 10,0 | 1030104814 | |||||
| 16 | 10,0 - 12,0 | 1030104816 | |||||
| 18 | 12,0 - 14,0 | 1030104818 | |||||
| 20 | 14,0 - 16,0 | 1030104820 | |||||
| 22 | 15,0 - 17,0 | 1030104822 | |||||
| 24 | 16,0 - 19,0 | 1030104824 | |||||
| 25 | 16,0 - 21,0 | 1030104825 |
