Al/A2

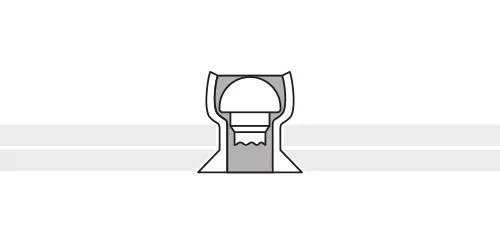

Aluminium blind rivet with countersunk head and stainless steel mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,2 | 06 | 6,0 | 1,5 - 3,5 | 980 | 760 | 3,3 | 1020103206 |
| 08 | 3,5 - 5,0 | 1020103208 | |||||
| 10 | 5,0 - 7,0 | 1020103210 | |||||
| 12 | 7,0 - 9,0 | 1020103212 | |||||
| 14 | 9,0 - 10,5 | 1020103214 | |||||
| 4,0 | 06 | 7,5 | 1,5 - 3,0 | 1 600 | 1 200 | 4,1 | 1020104006 |
| 08 | 3,5 - 5,0 | 1020104008 | |||||
| 10 | 5,0 - 6,5 | 1020104010 | |||||
| 12 | 6,5 - 8,5 | 1020104012 | |||||
| 14 | 8,5 - 10,5 | 1020104014 | |||||
| 16 | 10,5 - 12,5 | 1020104016 | |||||
| 4,8 | 08 | 9,0 | 2,0 - 4,5 | 2 250 | 1 700 | 4,9 | 1020104808 |
| 10 | 4,5 - 6,0 | 1020104810 | |||||
| 12 | 6,0 - 8,0 | 1020104812 | |||||
| 14 | 8,0 - 10,0 | 1020104814 | |||||
| 16 | 10,0 - 12,0 | 1020104816 | |||||
| 18 | 12,0 - 14,0 | 1020104818 | |||||
| 20 | 14,0 - 16,0 | 1020104820 | |||||
| 22 | 15,0 - 17,0 | 1020104822 | |||||
| 25 | 16,0 - 21,0 | 1020104825 |
