A2/A2

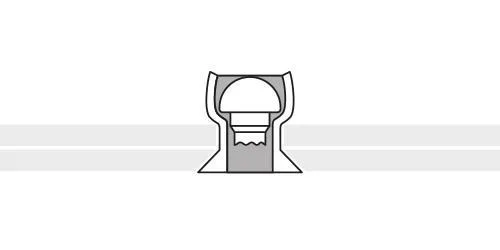

Stainless steel blind rivet with countersunk head and stainless steel mandrel.
Click here to select the tool for application of blind rivets.
| D1 [mm] | L[mm] | D2[mm] | Grip [mm] | Tensile [N] | Shear [N] | Hole [mm] | Code |
| 3,0 | 06 | 6,3 | 1,5 - 3,0 | 2 200 | 1 800 | 3,1 - 3,2 | 1520103006 |
| 08 | 3,0 - 5,0 | 1520103008 | |||||
| 10 | 5,0 - 6,5 | 1520103010 | |||||
| 12 | 6,5 - 8,5 | 1520103012 | |||||
| 3,2 | 06 | 6,7 | 1,5 - 3,0 | 2 500 | 1 900 | 3,3 - 3,4 | 1520103206 |
| 08 | 3,0 - 5,0 | 1520103208 | |||||
| 10 | 5,0 - 6,5 | 1520103210 | |||||
| 12 | 6,5 - 8,5 | 1520103212 | |||||
| 4,0 | 08 | 8,4 | 2,5 - 4,5 | 3 500 | 2 700 | 4,1 - 4,2 | 1520104008 |
| 10 | 4,5 - 6,5 | 1520104010 | |||||
| 12 | 6,5 - 8,5 | 1520104012 | |||||
| 14 | 8,5 - 10,0 | 1520104014 | |||||
| 16 | 10,0 - 12,0 | 1520104016 | |||||
| 18 | 12,0 - 14,0 | 1520104018 | |||||
| 20 | 14,0 - 16,0 | 1520104020 | |||||
| 4,8 | 08 | 10,1 | 2,5 - 4.0 | 5 000 | 4 000 | 4,9 - 5,0 | 1520104808 |
| 10 | 4,0 - 6,0 | 1520104810 | |||||
| 12 | 6,0 - 8,0 | 1520104812 | |||||
| 14 | 7,0 - 9,0 | 1520104814 | |||||
| 16 | 8,0 - 11,0 | 1520104816 | |||||
| 18 | 11,0 - 13,0 | 1520104818 | |||||
| 20 | 13,0 - 15,0 | 1520104820 | |||||
| 25 | 15,0 - 17,0 | 1520104825 | |||||
| 30 | 17,0 - 19,0 | 1520104830 | |||||
| 5,0 | 08 | 10,5 | 2,5 - 4.0 | 5 800 | 4 700 | 5,1 - 5,2 | 1520105008 |
| 10 | 4,0 - 6,0 | 1520105010 | |||||
| 12 | 6,0 - 8,0 | 1520105012 | |||||
| 14 | 7,0 - 9,0 | 1520105014 | |||||
| 16 | 8,0 - 11,0 | 1520105016 | |||||
| 18 | 11,0 - 13,0 | 1520105018 | |||||
| 20 | 13,0 - 15,0 | 1520105020 | |||||
| 25 | 15,0 - 17,0 | 1520105025 | |||||
| 30 | 17,0 - 19,0 | 1520105030 |
