STTSE A2

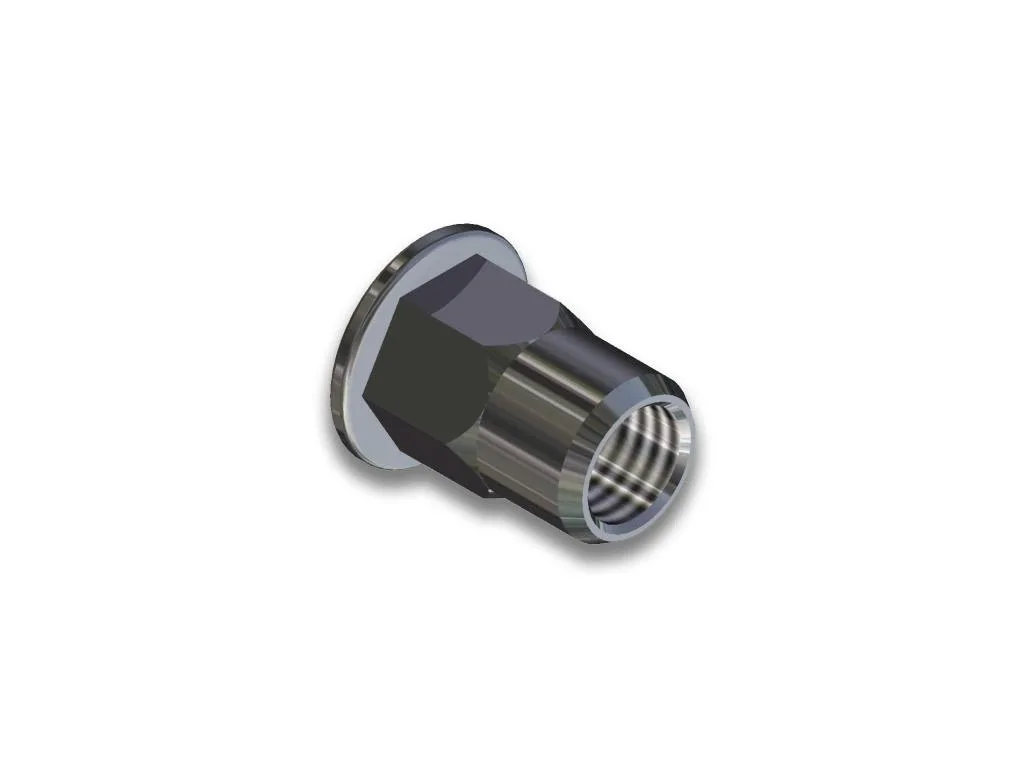

Stainless steel blind rivet nut half hex with flat head.

STTSE nakres otvor 6hr

Click here to select the tool for application of blind rivet nuts.

Thread

Code

Grip

Hole d -0/+0,1

D

B

K

L

M4

2122009104

0,5 - 2,0

6,0

5,9

9,0

0,8

11,0

M5

2122009105

0,5 - 2,5

7,0

6,9

10,0

1,0

12,0

M6

2122009106

0,5 - 3,0

9,0

8,9

12,7

1,3

15,5

M8

2122009108

1,0 - 3,5

11,0

10,9

16,0

1,5

18,0

M10

2122009110

1,0 - 4,0

13,0

12,9

18,0

1,7

21,0

Axial proof load for thread

M3 M4 M5 M6 M8 M10 M12
All types steel/stainless steel 3900N 6800N 11500N 16500N 25000N 32000N 34000N
aluminium 1900N 4000N 6500N 7800N 12300N 17500N -
Broken torque M3 M4 M5 M6 M8 M10 M12

steel/stainless steel

flat head, round/hex body

2Nm 5Nm 8,5Nm 15Nm 26Nm 50Nm 80Nm

steel/steinless steel

countersunk head, round/hex body

1Nm 4Nm 8Nm 15Nm 26Nm 45Nm 70Nm

steel/steinless steel

reduced head, round/hex body

1Nm 3Nm 6Nm 11Nm 20Nm 32Nm 50Nm

aluminium

flat/reduced (countersunk) head, round body

0,7Nm 2,5Nm 5Nm 8Nm 20Nm 25Nm -
Turning torque for clamping force M3 M4 M5 M6 M8 M10 M12

steel/stainless steel

flat head, round body

0,5Nm 1Nm 2Nm 4,5Nm 5,5Nm 11Nm 30Nm

steel/stainless steel

(reduced) countersunk head, round body

0,4Nm 0,8Nm 1,5Nm 3,5Nm 4,5Nm 8,5Nm 24Nm

aluminium

flat head, round body

0,25Nm 0,9Nm 1,5Nm 3,5Nm 5Nm 6,5Nm 21Nm

aluminium

(reduced) countersunk head, round body

0,2Nm 0,7Nm 1,2Nm 2,5Nm 4Nm 5Nm 16Nm

Shear strenght

M3 M4 M5 M6 M8 M10 M12
round/hex body, flat and (reduced) countersunk head steel/stainless steel 900N 1500N 2000N 3000N 4400N 5000N 6500N
aluminium 600N 1000N 1200N 2000N 2400N 3800N -
