PR-Z St

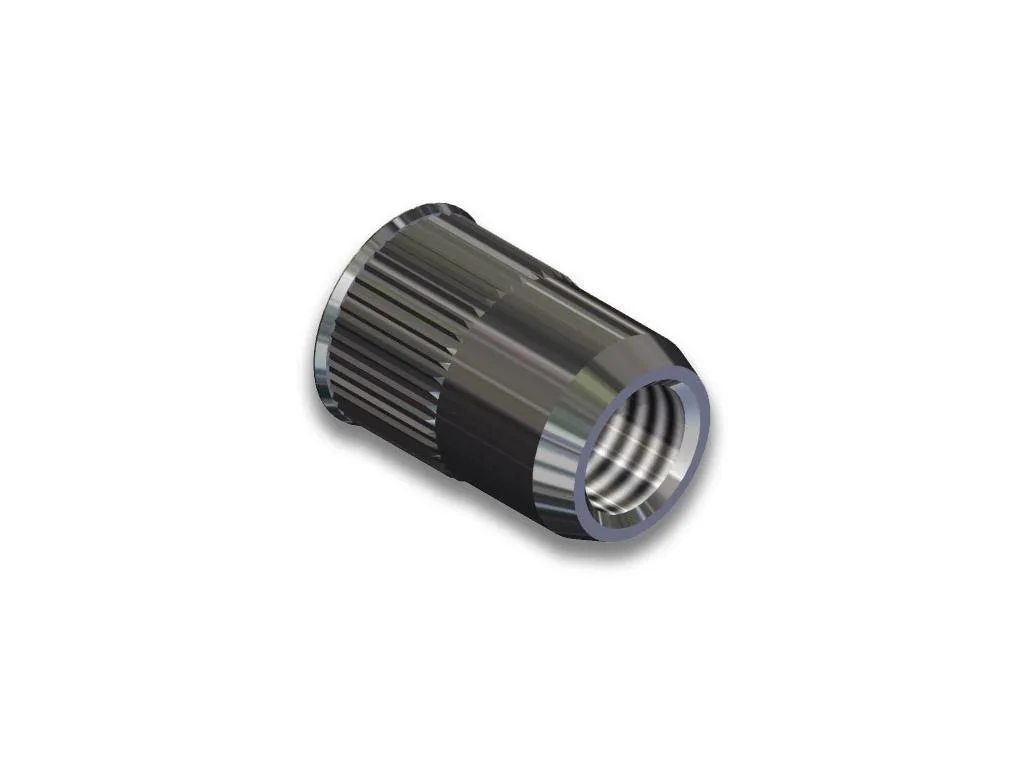

Steel blind rivet nut with reduced head and knurled body for imperial hole.
Click here to select the tool for application of blind rivet nuts.
|
Thread |
Code |
Grip |
Hole d -0/+0,1 |
D |
B |
K |
L |
|
M3 |
2110319103 |
0,5 - 1,5 |
4,8 |
4,65 |
5,4 |
0,4 |
9,0 |
|
M4 |
2110319104 |
0,5 - 2,0 |
6,5 |
6,35 |
7,0 |
0,5 |
10,5 |
|
M5 |
2110319105 |
0,5 - 2,5 |
7,25 |
7,15 |
7,85 |
0,5 |
12,0 |
|
M6 |
2110319106 |
1,0 - 3,0 |
9,6 |
9,45 |
10,3 |
0,6 |
15,0 |
|
M8 |
2110319108 |
1,0 - 3,5 |
10,6 |
10,45 |
11,3 |
0,6 |
16,0 |
|
M10 |
2110319110 |
1,0 - 4,0 |
12,8 |
12,65 |
13,8 |
0,65 |
20,0 |
|
Axial proof load for thread |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| All types | steel/stainless steel | 3900N | 6800N | 11500N | 16500N | 25000N | 32000N | 34000N |
| aluminium | 1900N | 4000N | 6500N | 7800N | 12300N | 17500N | - | |
| Broken torque | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
|
steel/stainless steel flat head, round/hex body |
2Nm | 5Nm | 8,5Nm | 15Nm | 26Nm | 50Nm | 80Nm |
|
steel/steinless steel countersunk head, round/hex body |
1Nm | 4Nm | 8Nm | 15Nm | 26Nm | 45Nm | 70Nm |
|
steel/steinless steel reduced head, round/hex body |
1Nm | 3Nm | 6Nm | 11Nm | 20Nm | 32Nm | 50Nm |
|
aluminium flat/reduced (countersunk) head, round body |
0,7Nm | 2,5Nm | 5Nm | 8Nm | 20Nm | 25Nm | - |
| Turning torque for clamping force | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
|
steel/stainless steel flat head, round body |
0,5Nm | 1Nm | 2Nm | 4,5Nm | 5,5Nm | 11Nm | 30Nm |
|
steel/stainless steel (reduced) countersunk head, round body |
0,4Nm | 0,8Nm | 1,5Nm | 3,5Nm | 4,5Nm | 8,5Nm | 24Nm |
|
aluminium flat head, round body |
0,25Nm | 0,9Nm | 1,5Nm | 3,5Nm | 5Nm | 6,5Nm | 21Nm |
|
aluminium (reduced) countersunk head, round body |
0,2Nm | 0,7Nm | 1,2Nm | 2,5Nm | 4Nm | 5Nm | 16Nm |
|
Shear strenght |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| round/hex body, flat and (reduced) countersunk head | steel/stainless steel | 900N | 1500N | 2000N | 3000N | 4400N | 5000N | 6500N |
| aluminium | 600N | 1000N | 1200N | 2000N | 2400N | 3800N | - | |
