Al/St E

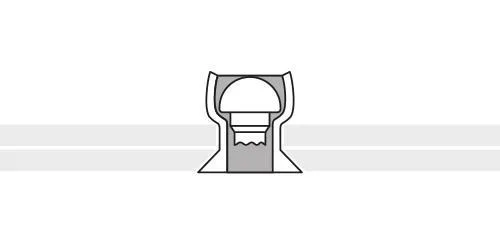

Trhací nýt se zapuštěnou hlavou hliníkový s ocelovým trnem E.
Pro výběr nářadí k aplikaci trhacího nýtu klikněte zde.

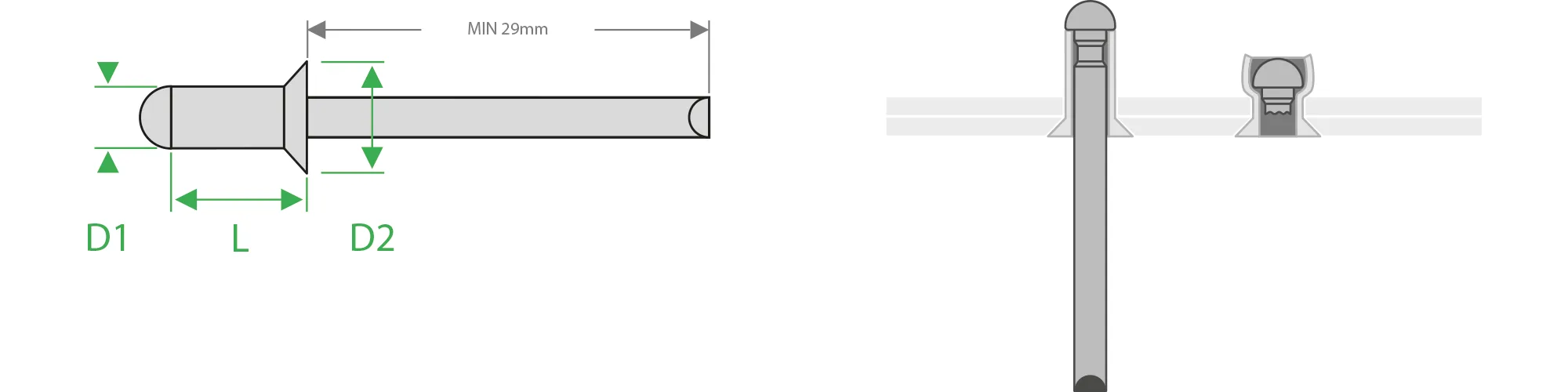

| D1 [mm] | L[mm] | D2[mm] | Rozsah[mm] | Tah[N] | Střih[N] | Otvor[mm] | Kód |
| 2,4 | 04 | 4,2-4,8 | 0,5 - 2,0 | 350 | 250 | 2,5 - 2,6 | 1010102404E |
| 06 | 2,0 - 4,0 | 1010102406E | |||||
| 08 | 4,0 - 6,0 | 1010102408E | |||||
| 10 | 6,0 - 8,0 | 1010102410E | |||||
| 12 | 7,0 - 9,5 | 1010102412E | |||||
| 14 | 8,0 - 11,5 | 1010102414E | |||||
| 16 | 10,0 - 13,0 | 1010102416E | |||||
| 3,2 | 06 | 5,4 - 6,3 | 1,0 - 3,5 | 700 | 500 | 3,3 - 3,4 | 1010103206E |
| 08 | 3,5 - 5,0 | 1010103208E | |||||
| 10 | 5,0 - 7,0 | 1010103210E | |||||
| 12 | 7,0 - 9,0 | 1010103212E | |||||
| 14 | 9,0 - 11,0 | 1010103214E | |||||
| 16 | 9,0 - 12,5 | 1010103216E | |||||
| 18 | 12,0 - 14,5 | 1010103218E | |||||
| 20 | 13,0 - 16,5 | 1010103220E | |||||
| 25 | 15,0 - 21,0 | 1010103225E | |||||
| 4,0 | 06 | 6,9 - 7,5 | 1,0 - 3,0 | 1200 | 850 | 4,1 - 4,2 | 1010104006E |
| 08 | 3,0 - 5,0 | 1010104008E | |||||
| 10 | 4,0 - 6,5 | 1010104010E | |||||
| 12 | 6,0 - 8,5 | 1010104012E | |||||
| 14 | 7,0 - 10,5 | 1010104014E | |||||
| 16 | 8,0 - 12,5 | 1010104016E | |||||
| 18 | 10,0 - 14,5 | 1010104018E | |||||
| 20 | 12,0 - 16,0 | 1010104020E | |||||
| 25 | 16,0 - 21,0 | 1010104025E | |||||
| 30 | 21,0 - 26,0 | 1010104030E | |||||
| 35 | 26,0 - 30,5 | 1010104035E | |||||
| 40 | 30,5 - 35 | 1010104040E | |||||
| 4,8 | 06 | 8,3 - 9,5 | 2,5 - 4,0 | 1800 | 1500 | 4,9 - 5,0 | 1010104806E |
| 08 | 2,5 - 4,0 | 1010104808E | |||||
| 10 | 4,0 - 6,0 | 1010104810E | |||||
| 12 | 6,0 - 8,0 | 1010104812E | |||||
| 14 | 8,0 - 10,0 | 1010104814E | |||||
| 16 | 8,0 - 12,0 | 1010104816E | |||||
| 18 | 10,0 - 14,0 | 1010104818E | |||||
| 20 | 12,0 - 16,0 | 1010104820E | |||||
| 25 | 16,0 - 21,0 | 1010104825E | |||||
| 30 | 21,0 - 25,0 | 1010104830E | |||||
| 35 | 25,0 - 30,0 | 1010104835E | |||||
| 40 | 30,0 - 35,0 | 1010104840E | |||||
| 45 | 35,0 - 40,0 | 1010104845E | |||||
| 50 | 40,0 - 45,0 | 1010104850E | |||||
| 6,4 | 08 | 11,6 - 13,4 | 1,5 - 3,0 | 3400 | 2700 | 6,5 - 6,6 | 1010106408E |
| 10 | 2,0 - 4,0 | 1010106410E | |||||
| 12 | 3,0 - 6,0 | 1010106412E | |||||
| 14 | 6,0 - 8,0 | 1010106414E | |||||
| 16 | 6,0 - 10,0 | 1010106416E | |||||
| 18 | 8,0 - 12,0 | 1010106418E | |||||
| 20 | 10,0 - 14,0 | 1010106420E | |||||
| 25 | 14,0 - 18,0 | 1010106425E | |||||
| 30 | 18,0 - 23,0 | 1010106430E | |||||
| 35 | 23,0 - 28,0 | 1010106435E | |||||
| 40 | 28,0 - 33,0 | 1010106440E |
