Al/St RAL 9005

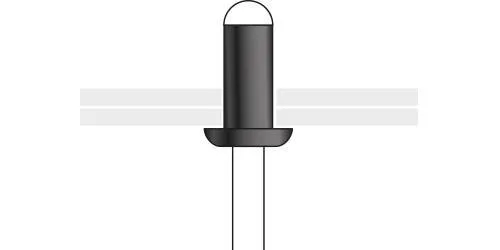

Trhací nýt s plochou hlavou hliníkový s ocelovým trnem, RAL 9005
Pro výběr nářadí k aplikaci trhacího nýtu klikněte zde.

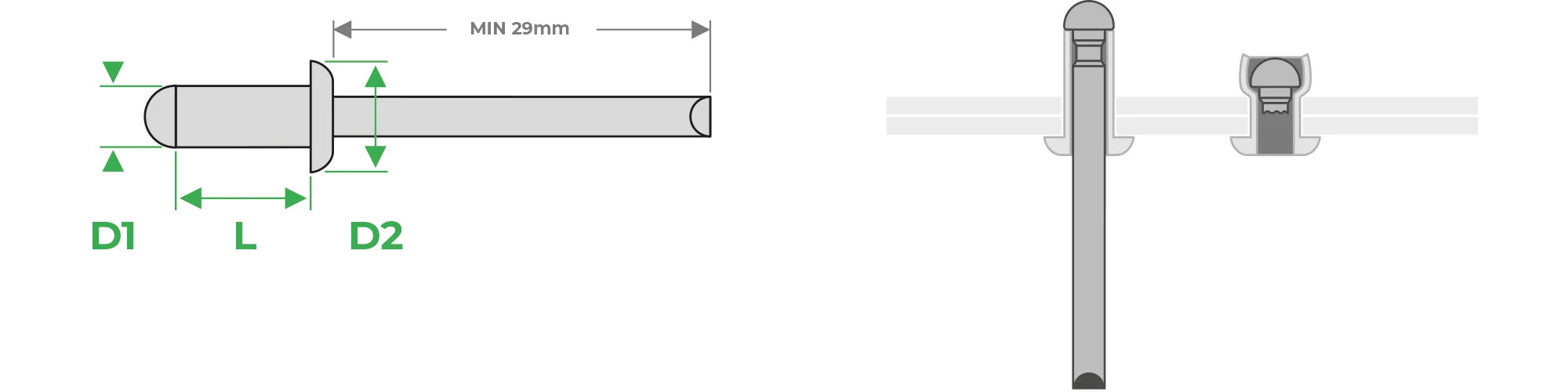

| D1 [mm] | L[mm] | D2[mm] | Rozsah[mm] | Tah[N] | Střih[N] | Otvor[mm] | Kód |
| 3,0 | 06 | 6,5 | 1,0 - 3,0 | 950 | 600 | 3,1 - 3,2 | B1010003006/9005 |
| 08 | 3,0 - 5,0 | B1010003008/9005 | |||||
| 10 | 5,0 - 7,0 | B1010003010/9005 | |||||
| 3,2 | 06 | 6,5 | 1,0 - 3,0 | 1 100 | 750 | 3,3 - 3,4 | B1010003206/9005 |
| 08 | 3,0 - 5,0 | B1010003208/9005 | |||||
| 10 | 5,0 - 7,0 | B1010003210/9005 | |||||
| 12 | 7,0 - 9,0 | B1010003212/9005 | |||||
| 4,0 | 07 | 8,0 | 2,0 - 3,5 | 1 800 | 1 250 | 4,1 - 4,2 | B1010004007/9005 |
| 08 | 3,0 - 4,5 | B1010004008/9005 | |||||
| 10 | 5,0 - 6,5 | B1010004010/9005 | |||||
| 12 | 7,0 - 8,5 | B1010004012/9005 | |||||
| 14 | 8,0 - 10,5 | B1010004014/9005 | |||||
| 16 | 10,0 - 12,5 | B1010004016/9005 | |||||
| 4,8 | 08 | 9,5 | 2,5 - 4,0 | 2 600 | 1 850 | 4,9 - 5,0 | B1010004808/9005 |
| 10 | 4,5 - 6,0 | B1010004810/9005 | |||||
| 12 | 6,5 - 8,0 | B1010004812/9005 | |||||
| 16 | 9,5 - 12,0 | B1010004816/9005 |
