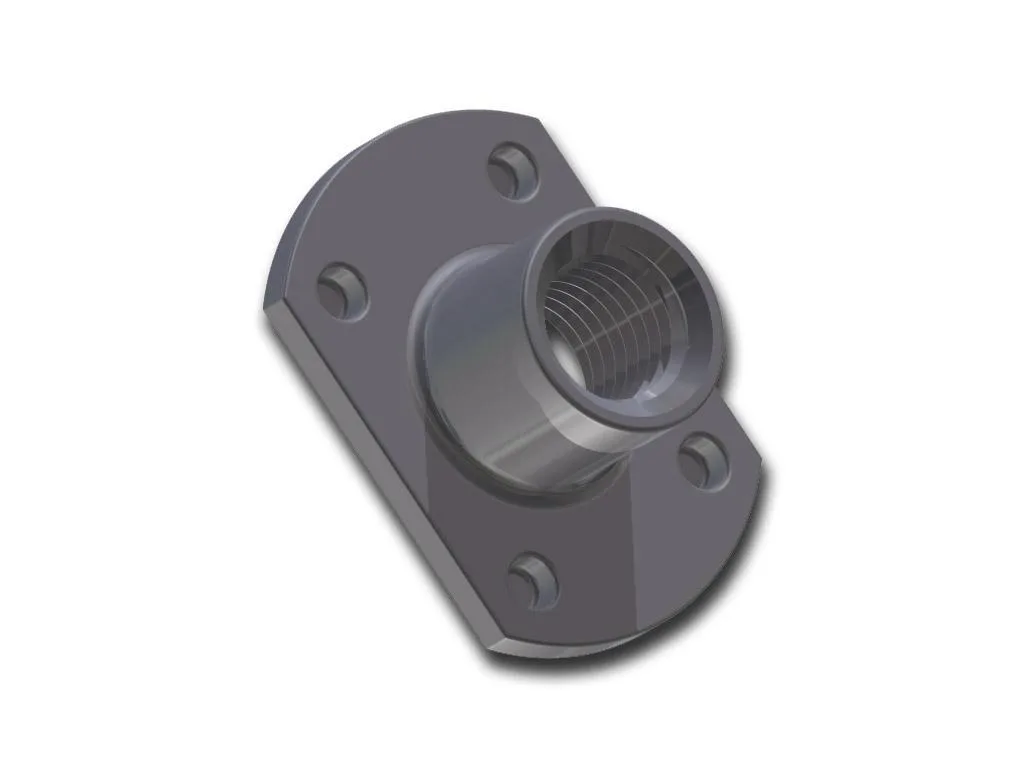

form A

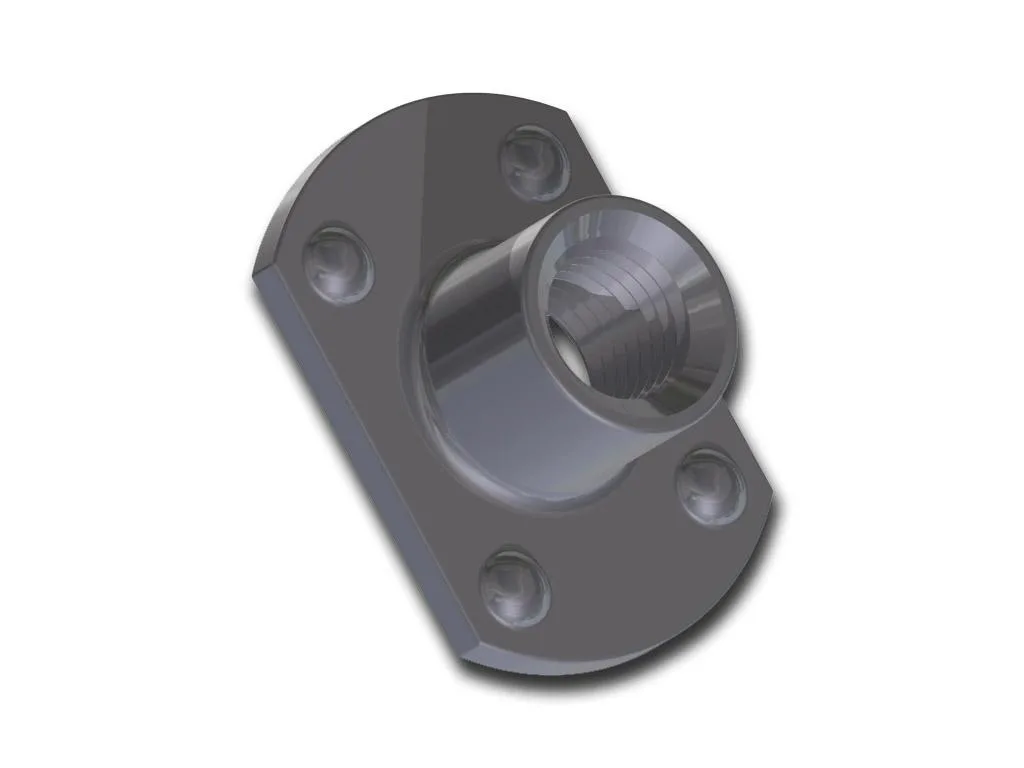

form B

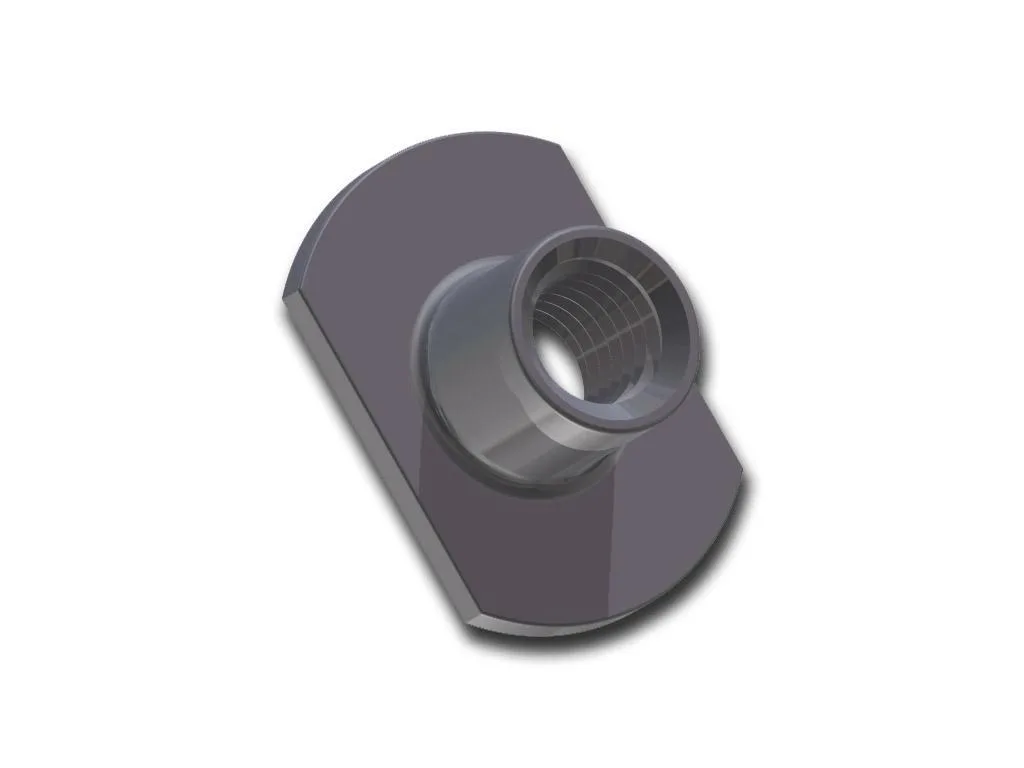

form C
form D
Tisk
Bodovací matice

Bodovací matice T

Bodovací matice

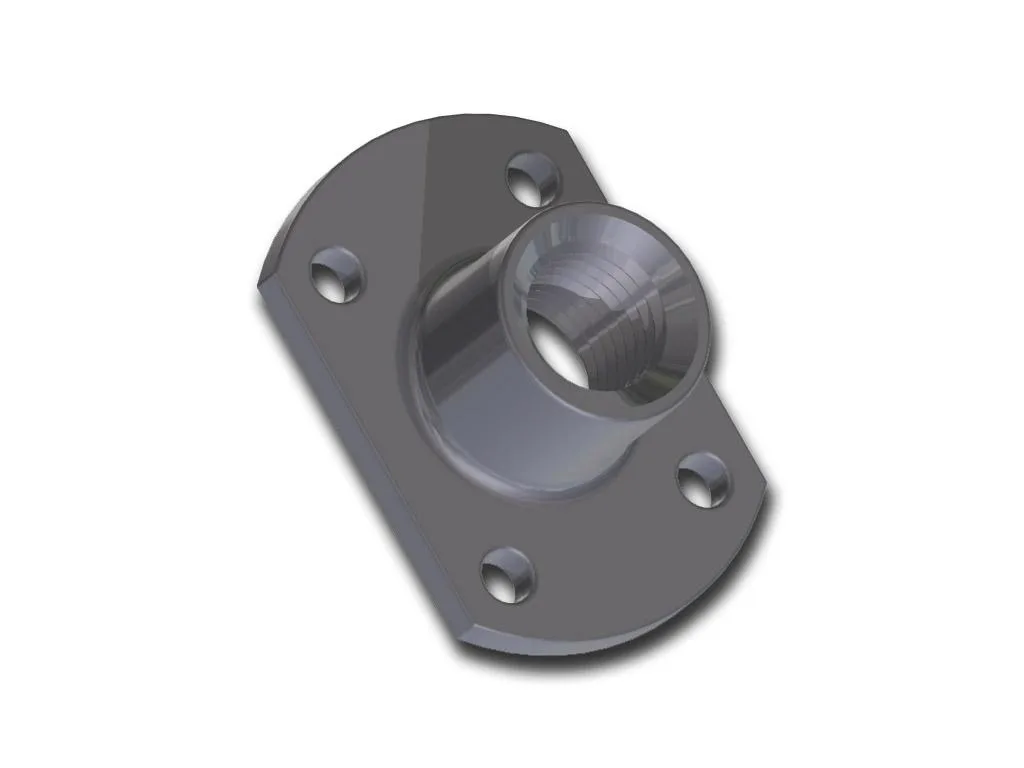

Forma A                Forma B              Forma C           Forma D

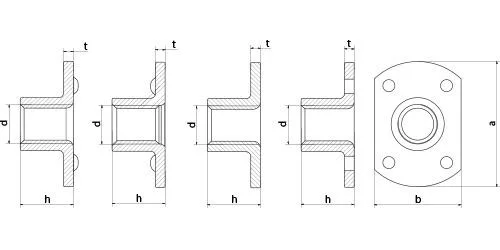

t nakres

Rozměry

Dimmensions

Kód

Code

Závit

Thread

a

b

t

h

Ocel

Steel

Nerez A2-50

Stainless steel A2-50

M3

17,0

9,0

1,0

6,0

314200300X



M4

17,0

9,0

1,0

6,0

314200400X

314300400X

M5

19,0

11,0

1,0

7,8

314200500X

314300500X

M6

19,0

11,0

1,2

7,8

314200600X

314300600X

M8

26,0

18,0

2,0

11,0

314200800X

314300800X

M10

26,0

18,0

2,0

11,0

314201000X

314301000X


×
